главная пара корпус редуктора (hd485 SHAANXI (Шанкси) SHACMAN F3000 24 Гр. Задний и средний мосты

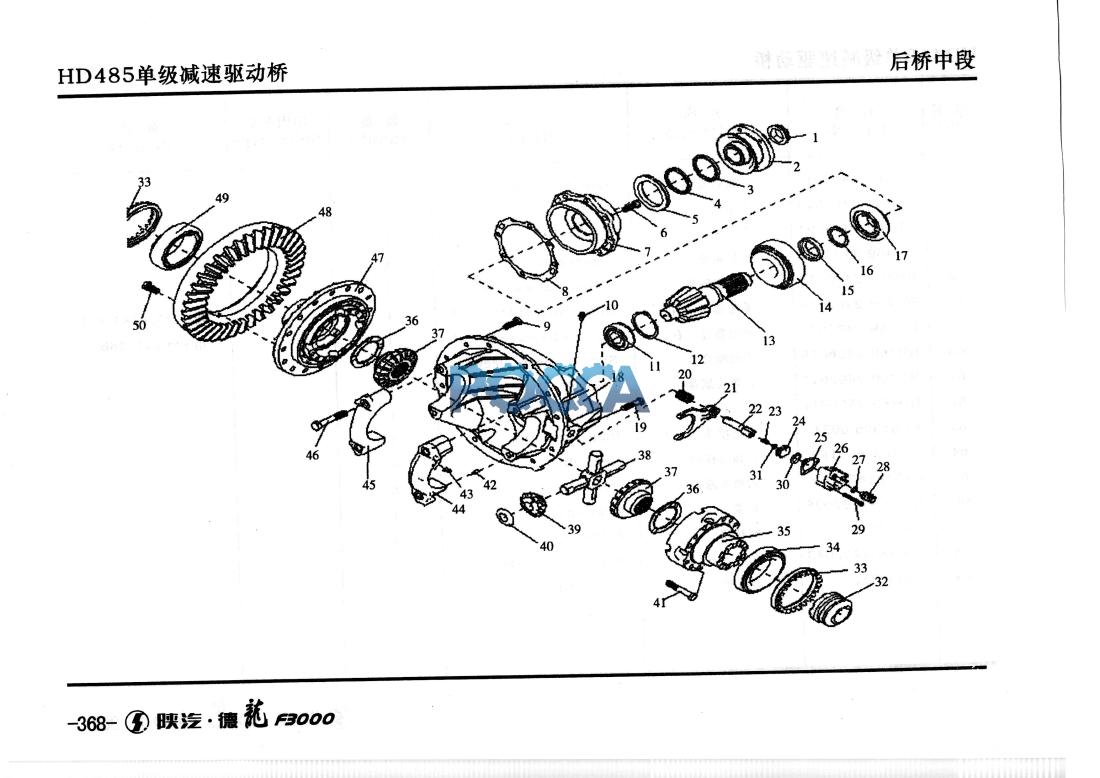

главная пара,корпус редуктора
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|---|---|---|---|---|---|---|---|
| 1 | 81.90685.0303 | 1 | 凸缘螺母 | Flange nut | 0180端面齿 | |||
| 2 | 81.39115.5104 | 1 | 凸缘总成 | Flange assembly | 装单油封 | |||
| 3 | DZ9112320183 | 1 | 轴密封圈 | Seal ring for axle | 装双油封 | |||
| 4 | 99012320184 | 1 | 轴密封圈 | Seal ring for axle | 用于 1=3.364 | |||
| 81.35120.0461 | 1 | 被动锥齿轮 | Crown wheel | 用于 1=5.286 | ||||
| 5 | DZ9112320275 | 1 | 隔环 | Space ring | 用于1 = 3.364, 3.083 | |||
| 6 | Q1811645TF2 | 8 | 六角头螺栓 | Hex bolt | 用于 1=3.083 | |||
| 7 | 81.35601.0028 | 1 | 轴承座 | Bearing seat | ||||
| 8 | 81.90701.0933 | 按需 | 垫片 | Washer | ||||
| 9 | Q1811650TF2 | 10 | 六角头螺栓 | Hex bolt | ||||
| 10 | 81.35306.0034 | 1 | 直通接头 | Plug connection | ||||
| 11 | DZ9003323010 | 1 | 圆柱滚子轴承 | Cylinder roller bearing | ||||
| 12 | Q433100 | 1 | 弹性挡圈 | Circlip | ||||
| 13 | 81.35101.0456 | 1 | 主动锥齿轮 | Pinion gear | ||||
| 14 | 06.32499.0128 | 1 | 圆锥滚子轴承 | Tapered roller bearing | ||||
| 15 | 81.91701.0404 | 1 | 间隔衬套 | Spacing sleeve | ||||
| 16 | 81.90770.0020 | 按需 | 调整垫片 | Adjusting washe | ||||
| 17 | 06.32499.0022 | 1 | 圆锥滚子轴承 | Tapered roller bearing | ||||
| 18 | 81.35301.0074 | 1 | 减速器壳 | Drive head case | ||||
| 19 | Q1811665TF2 | 2 | 六角头螺栓 | Hex bolt | ||||
| 20 | 81.97601.0689 | 1 | 弹簧 | Spring | ||||
| 21 | 81.35614.0016 | 1 | 差速锁拨叉 | Selector fork | ||||
| 22 | 81.35619.0003 | 1 | 操纵杆 | Selector shaft | ||||
| 23 | Q2821025 | 1 | 螺柱 | Threaded pin | ||||
| 24 | 81.35634.0011 | 1 | 开关活塞 | Plunger | ||||
| 25 | 81.96601.0627 | 1 | 气缸衬垫 | Cylinder gasketr | ||||
| 26 | 81.35631.0006 | 1 | 差速锁缸 | Diff. lock cylinder | ||||
| 27 | 90003098020 | 1 | 密封垫圈 | Seal washer | ||||
| 28 | 81.25503.0244 | 1 | 差速锁压力开关 | Diff. lock sensor | ||||
| 29 | Q150B0870 | 3 | 六角头螺栓 | Hex bolt | ||||
| 30 | 06.56331.3274 | 1 | 〇形密封圈 | O-ring | ||||
| 31 | Q350B10 | 1 | 六角薄螺母 | Hex nut | ||||
| 32 | 81.35202.0027 | 1 | 滑动啮合套 | Slidable joggle sleeve | ||||
| 33 | 81.35125.0024 | 2 | 调整螺母 | Adjusting nut | ||||
| 34 | 06.32499.0129 | 1 | 圆锥滚子轴承 | Tapered roller bearing | ||||
| 35 | 81.35110.0040 81.35110.0045 | 1 | 差速器壳（右） 差速器壳（右） | Differential case (right) Differential case (right) | ||||
| 36 | 81.35613.0040 | 1 | 半轴齿轮垫片 | Axle shaft gear washer | ||||
| 37 | 81.35106.0037 | 2 | 半轴齿轮 | Axle shaft gear | ||||
| 38 | 81.35608.0021 | 2 | 十字轴 | Spide | ||||
| 39 | 81.35108.0066 | 1 | 行星齿轮 | Planet gear | ||||
| 40 | 81.90701.0931 | 4 | 行星齿轮垫片 | Planet gear washer | ||||
| 41 | Q151B16100TF2 | 4 | 六角头螺栓 | Hex bolt | ||||
| 42 | Q5220816 | 12 | 销子 | Pin | ||||
| 43 | 06.16020.6914 | 4 | 销 | Pinr | ||||
| 44 | 81.35302.0062 | 1 | 瓦盖（右） | Bearing cap (right) | ||||
| 45 | 81.35302.0059 | 1 | 瓦盖（左） | Bearing cap (left) | ||||
| 46 | Q151C20110TF2 | 4 | 六角头螺栓 | Hex bolt | ||||
| 47 | 81.35105.0045 | 1 | 差速器壳（左） | Differential case(left) | ||||
| 48 | 81.35120.0456 | 1 | 被动锥齿轮 | Crown wheel | ||||
| 49 | 06.32489.0063 | 1 | 圆锥滚子轴承 | Tapered roller bearing | ||||
| 50 | 06.02816.1413 | 16 | 六角头螺栓 | Hex bolt |
