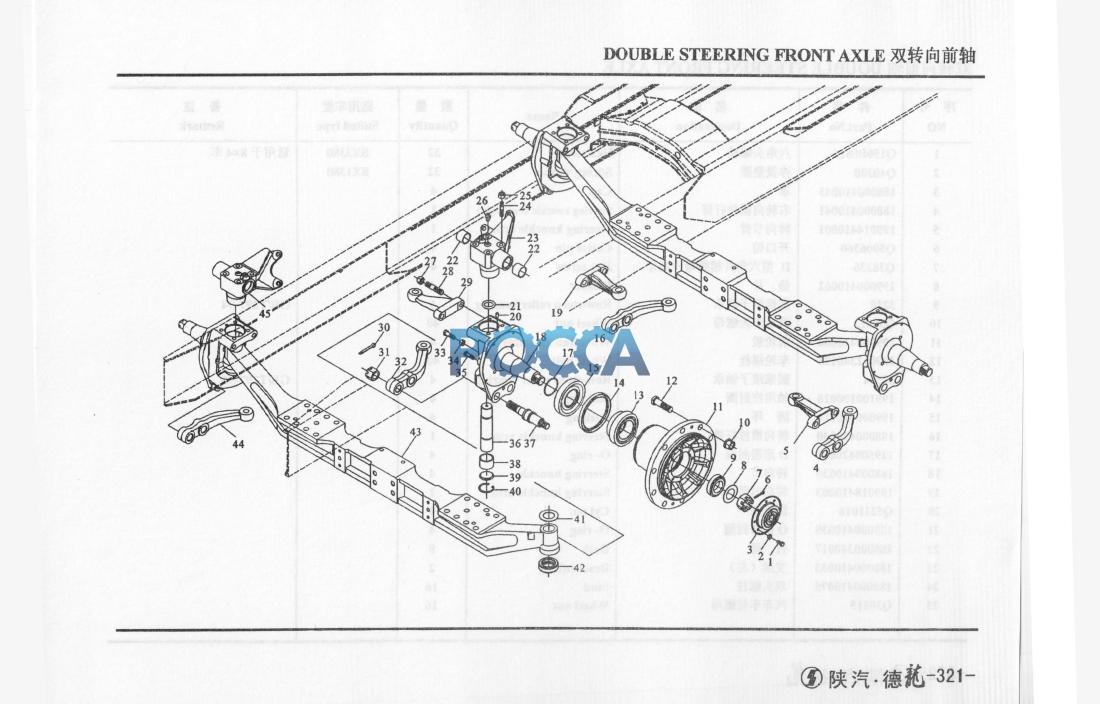

Двухосное управление рулевым механизмом: SHAANXI (Шанкси) SHACMAN F2000 34 Гр. Рулевое управление
ГУР Насос ГУР
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|---|---|---|---|---|---|---|---|
| 1 | Q150B0816 | 32 | 六角头螺栓 | Hex.screw | 适用于8x4车 | SX3380 | ||
| 2 | Q40308 | 32 | 弹簧垫圈 | Spring washer | SX1380 | |||
| 3 | 188000410043 | 4 | 罩 | Cap | ||||
| 4 | 188000410041 | 1 | 右转向横拉杆臂 | Steering knuckle arm (right) | ||||
| 5 | 199014410001 | 1 | 转向节臂 | Steering knuckle arm | ||||
| 6 | Q5006360 | 4 | 开口销 | Cotter pin | ||||
| 7 | Q38336 | 4 | n型六角开槽螺母一细牙 | Hex.screw | ||||
| 8 | 199000410062 | 4 | 垫片 | Washer | ||||
| 9 | 3210 | 4 | 圆锥滚子轴承 | Row-steep roller bearing | GB/T297-94 | |||
| 10 | Q30022 | 40 | 汽车车轮螺母 | Wheel nut | ||||
| 11 | 199000410066 | 4 | 前轮毂 | Whee hub assembly | ||||
| 12 | 199012340123 | 40 | 车轮螺栓 | Wheel bolt | ||||
| 13 | 32314 | 4 | 圆锥滚子轴承 | Row-steep roller bearing | GB/T297-95 | |||
| 14 | 199100100028 | 4 | 轴用密封圈 | Seal ring | ||||
| 15 | 199000410114 | 4 | 隔环 | Bushing | ||||
| 16 | 188000410040 | 1 | 转向横拉杆臂 | Steering knuckle arm | ||||
| 17 | 129500420033 | 4 | 〇形密封圈 | O- ring | ||||
| 18 | 188000410030 | 4 | 转向节 | Steering hnuckle | ||||
| 19 | 199018410003 | 1 | 转向节臂 | Steering knuckle arm | ||||
| 20 | Q5211016 | 4 | 圆柱销 | CyLpin | ||||
| 21 | 188000410035 | 4 | 〇形密封圈 | O- ring | ||||
| 22 | 188000340017 | 8 | 衬套 | Bush | ||||
| 23 | 188000410033 | 2 | 支架（左） | Bracket(Ieft) | ||||
| 24 | 188000410075 | 16 | 双头螺柱 | Stud | ||||
| 25 | Q30215 | 16 | 汽车车轮螺母 | Wheel nut | ||||
| 26 | 190003963114 | 4 | 米制锥螺纹滑脂嘴 | Taper thread grease nipple | ||||
| 27 | Q30218 | 8 | 汽车车轮螺母 | Wheel nut | ||||
| 28 | 188000410060 | 8 | 双头螺柱 | Stud | ||||
| 29 | 199000410001 | 1 | 转向节臂 | Steering knuckle arm | ||||
| 30 | Q5005050 | 8 | 开口销 | Cotter pin | ||||
| 31 | Q38327 | 8 | II型六角开槽螺母一细牙 | Hex nut | ||||
| 32 | 199018410005 | 1 | 右转向横拉杆臂 | Steering knuckle arm (right) | ||||
| 33 | Q26114 | 4 | 六角头自攻锁紧螺钉 | Hex,screw | ||||
| 34 | Q351B14T15 | 4 | 六角薄螺母 | Hex,screw | ||||
| 35 | Q151C1220 | $ | 六角头螺栓一细牙 | Hex.screw | ||||
| 36 | 188000410031 | 4 | 转向节销 | Steering knuckle pin | ||||
| 37 | 188000410038 | 8 | 制动蹄支承销 | Brake hoof pin | ||||
| 38 | 188000410029 | 4 | 衬套 | Bush | ||||
| 39 | 188000410100 | 4 | 盖 | Cover | ||||
| 40 | Q43056 | 4 | 孔用弹簧挡圈 | Circlip for hole | ||||
| 41 | 188100411404 | 按需 | 垫圈 | Washer | ||||
| 42 | 188000410049 | 4 | 推力滚柱轴承 | Thrust roller bearing | ||||
| 43 | 188000410054 | 2 | 前轴 | Front axle | ||||
| 44 | 199018410004 | 1 | 转向横拉杆臂 | Steering cross rod arm | ||||
| 45 | 188000410034 | 2 | 支架（右） | Bracket (right) |
