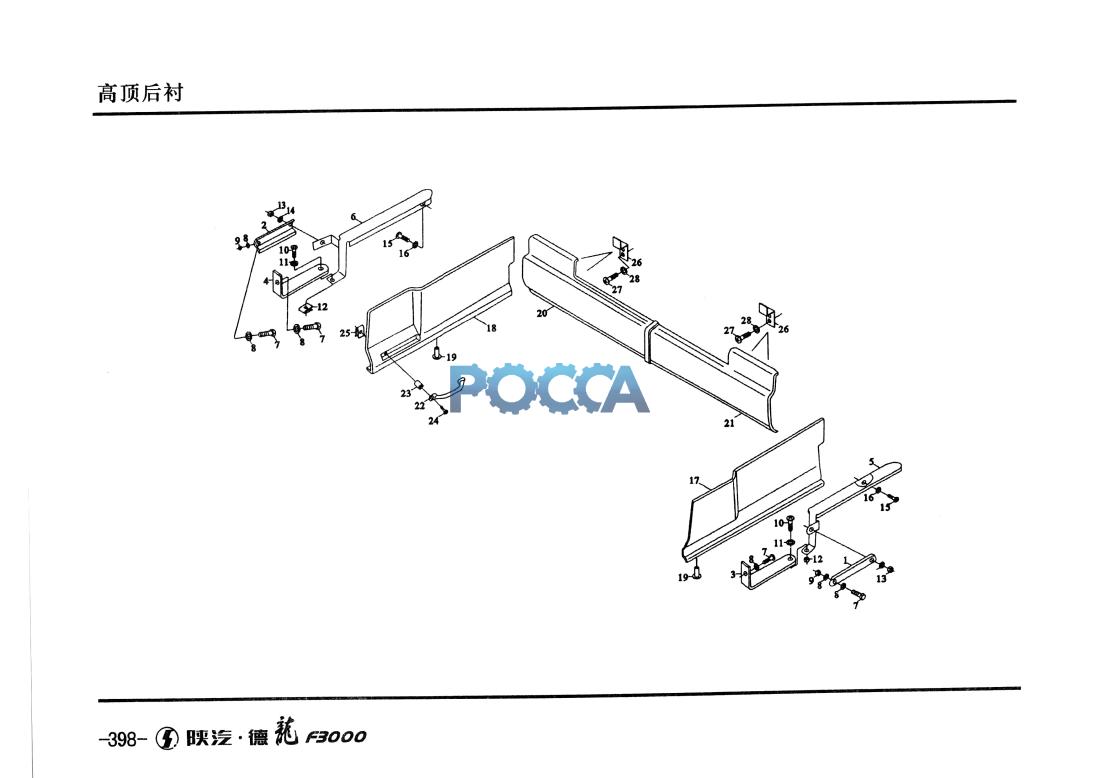

1 |
|
|
81.62930.0047 |
1 |
左前支架 |
Carrier left front |
|
M5X25-4.8-H-A2C |
|
2 |
|
|
81.62930.0046 |
1 |
右前支架 |
Carrier right front |
|
A5.3X 10X 1-200HV-MAN183-B1 |
|
3 |
|
|
81.62930.0049 |
1 |
U型左支架 |
U channel left |
|
ST4.8-1-A3C |
|
4 |
|
|
81.62930.0048 |
l |
U型右支架 |
U channel right |
|
M6-8-MAN183-B1 |
|
5 |
|
|
81.62930.5107 |
1 |
左后支架 |
Carrier assembly left |
|
A6.4 X 12 X 1.6-200HV-MAN183-B1 |
|
6 |
|
|
81.62930.5106 |
1 |
右后支架 |
Carrier assembly right |
|
ST4.8X16C-H-A3R |
|
7 |
|
|
06.07158.1604 |
4 |
自攻螺钉 |
Oval-head self-tapping screw |
|
5.3X 15X 1.2-140HV-MAN183-B1 |
|
8 |
|
|
06.15013.0408 |
12 |
垫圈 |
Washer |
|
7X3X17.5-4-PA6.6-SW |
|
9 |
|
|
06.11064.2111 |
4 |
螺母 |
Hexagon nut |
|
6X10X8-ST50 - 2 |
|
10 |
|
|
06.07158.1604 |
4 |
自攻螺钉 |
Oval-head self-tapping screw |
|
ST4.8 X 22C-H-MAN183-B1 |
|
11 |
|
|
06.15013.0408 |
4 |
垫圈 |
Washer |
|
ST4.8-1-A3C |
|
12 |
|
|
06.13189.0025 |
4 |
螺母 |
Speed nut |
|
ST4.8X16C-H-A3R |
|
13 |
|
|
06.11064.2112 |
4 |
螺母 |
Hexagon nut |
|
A5.3X 10X 1-200HV-MAN183-B1 |
|
14 |
|
|
06.15013.0409 |
4 |
垫圈 |
Washer |
|
|
|
15 |
|
|
06.07158.1604 |
10 |
自攻螺钉 |
Oval-head self-tapping screw |
|
|
|
16 |
|
|
06.15190.0306 |
10 |
垫圈 |
Washer |
|
|
|
17 |
|
|
DZ13241610091 |
1 |
侧围左上衬 |
Panelling |
|
|
|
18 |
|
|
DZ13241610020 |
1 |
侧围右上衬 |
Panelling |
|
|
|
19 |
|
|
06.24249.0007 |
10 |
销钉 |
Rivet |
|
|
|
20 |
|
|
DZ13241610090 |
1 |
后围右上衬总成 |
Panelling assembly |
|
|
|
21 |
|
|
DZ13241610090 |
1 |
后围左上衬总成 |
Panelling |
|
|
|
22 |
|
|
81.97001.6069 |
1 |
扶手总成 |
Grab handle assembly |
|
|
|
23 |
|
|
81.33110.2003 |
4 |
衬套 |
bush |
|
|
|
24 |
|
|
06.07159.0012 |
4 |
盘头螺钉 |
Oval-head self-tapping screw |
|
|
|
25 |
|
|
06.13189.0025 |
4 |
螺母 |
Speed nut |
|
|
|
26 |
|
|
81.97487.0851 |
4 |
角架 |
An^e |
|
|
|
27 |
|
|
06.07158.1604 |
8 |
自攻螺钉 |
Oval-head self-tapping screw |
|
|
|
28 |
|
|
06.15013.0408 |
8 |
垫圈 |
Washer |
|
|
