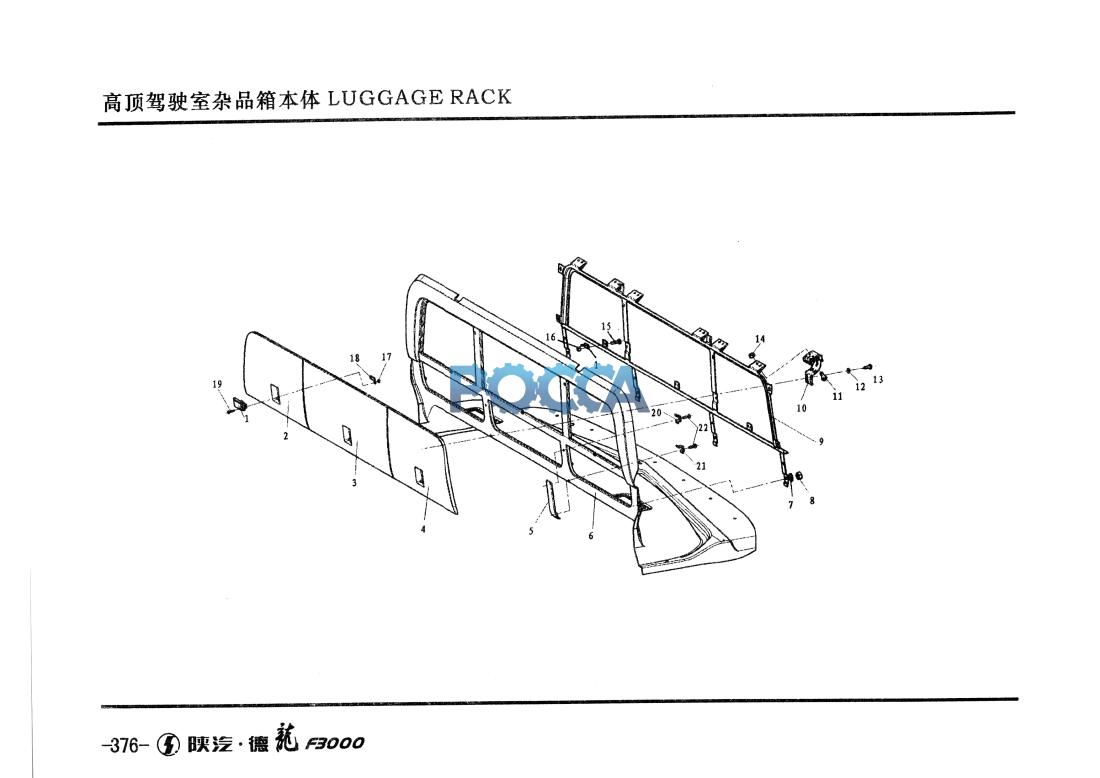

1 |
|
|
DZ13241775113 |
3 |
杂品箱门锁总成 |
Sundries box lock assembly |
|
|
|
2 |
|
|
DZ13241775112 |
1 |
杂品箱左侧门板 |
Sundries box on the left ckxr pand |
|
|
|
3 |
|
|
DZ13241775111 |
1 |
杂品箱中间门板 |
Sundries box middle door |
|
|
|
4 |
|
|
DZ13241775117 |
1 |
杂品箱右侧门板 |
Sundries box on the ri^ht door |
|
|
|
5 |
|
|
DZ13241775134 |
2 |
装饰面板 |
Decorative Pands |
|
|
|
6 |
|
|
DZ13241775131 |
1 |
杂品箱本体 |
Sundries box body |
|
|
|
7 |
|
|
Q40108 |
12 |
平垫圈 |
Flat washer |
|
|
|
8 |
|
|
Q340B08 |
12 |
1型六角螺母 |
T>pe 1 Hexagon nut |
|
|
|
9 |
|
|
DZ13241775132 |
1 |
杂品箱本体骨架总成 |
Sundries box body frame assembly |
|
|
|
10 |
|
|
DZ13241775116 |
6 |
杂品箱铰链 |
Sundries Box Hinge |
|
|
|
11 |
|
|
Q150B0612 |
12 |
六角头螺栓 |
HexagDn head bolt |
|
|
|
12 |
|
|
Q40105 |
24 |
平垫圈 |
Flat washer |
|
|
|
13 |
|
|
Q2714815 |
24 |
十字槽盘头自攻螺钉 |
Cross-dot pan head sdf-t^)pang screw |
|
|
|
14 |
|
|
Q340B06 |
12 |
1型六角螺母 |
Type 1 Hexagon nut |
|
|
|
15 |
|
|
Q2140516 |
6 |
十字槽盘头螺钉 |
Cross-slot pan head screws |
|
|
|
16 |
|
|
Q340B05 |
6 |
1型六角螺母 |
Type 1 Hexagm nut |
|
|
|
17 |
|
|
Q340B03 |
12 |
1型六角螺母 |
1 HexagDn nut |
|
|
|
18 |
|
|
DZ13241775114 |
3 |
门锁安装衬板 |
Liner Lock Installation |
|
|
|
19 |
|
|
Q2140312 |
12 |
十字槽盘头螺钉 |
Cross-slot pan head screws |
|
|
|
20 |
|
|
DZ13241775135 |
2 |
装饰面板安装卡片(一 1 |
Decorative pand to install the caid (1) |
|
|
|
21 |
|
|
DZ13241775136 |
2 |
装饰面板安装卡片(二} |
Decorative pand to install the card ⑵ |
|
|
|
22 |
|
|
Q2714215 |
4 |
十字槽盘头自攻螺钉 |
Cross-sbt pan head sdf-tapping screw |
|
|
