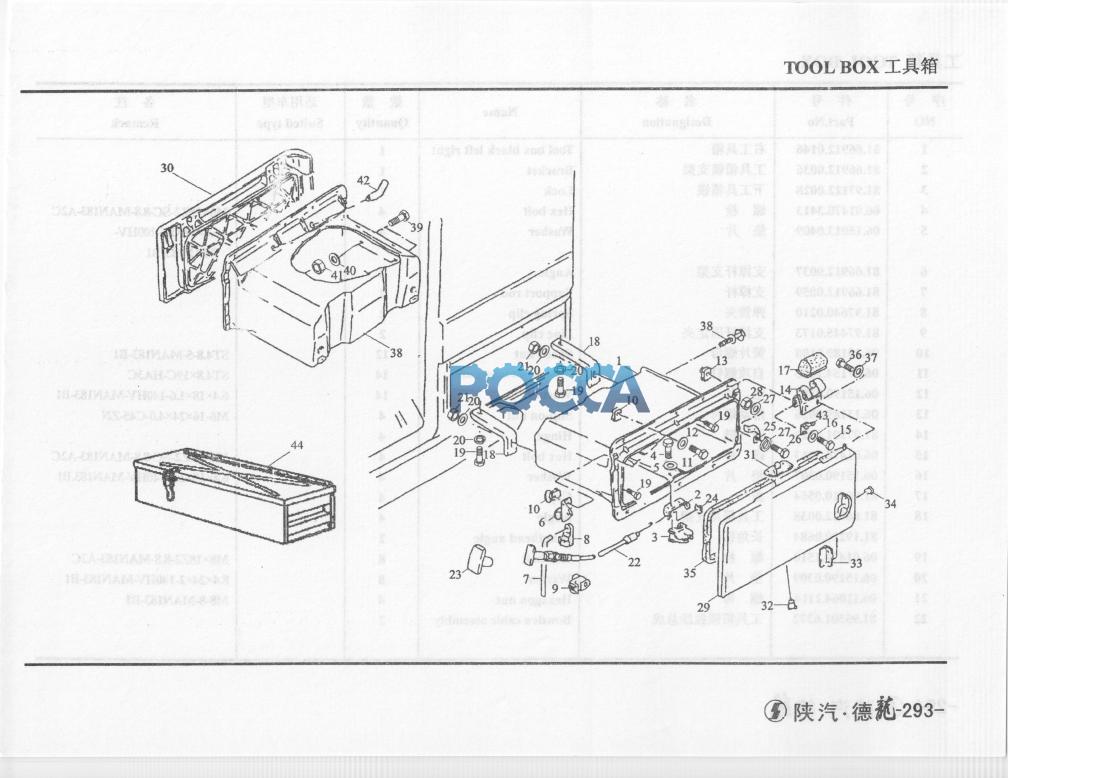

1 |
|
|
81.66912.0146 |
1 |
Tool box black left right |
右工具箱 |
|
|
|
2 |
|
|
81.66912.0036 |
1 |
Bracket |
工具箱锁支架 |
|
|
|
3 |
|
|
81.97122.0028 |
1 |
Lock |
下工具箱锁 |
|
|
|
4 |
|
|
06.01470.3413 |
4 |
Hex bolt |
螺栓 |
|
M6x25Z2-SC-8.8-MAN183-A2C |
|
5 |
|
|
06.15013.0409 |
4 |
Washer |
垫片 |
|
A6.4xl2xl.6-200HV-MAN183-B1 |
|
6 |
|
|
81.66912.0037 |
2 |
Angle |
支撑杆支架 |
|
|
|
7 |
|
|
81.66912.0059 |
2 |
Support rod |
支撑杆 |
|
|
|
8 |
|
|
81.97640.0210 |
2 |
Spring clip |
弹簧夹 |
|
|
|
9 |
|
|
81.97445.0173 |
2 |
Line clip |
支撑杆固定夹 |
|
|
|
10 |
|
|
06.13189.0108 |
12 |
Speed nut |
簧片螺母 |
|
ST4.8-5-MAN185-B1 |
|
11 |
|
|
06.07154.1605 |
14 |
Oval-head self-tapping screw |
自攻螺钉 |
|
ST4.8X19C-HA3C |
|
12 |
|
|
06.15190.0307 |
14 |
Washer |
垫片 |
|
6,4xl8xl.6-140HV-IVL^183-Bl |
|
13 |
|
|
06.13189.0056 |
4 |
Slip-on nut |
滑动螺母 |
|
MiV16x24x4.0-C45-ZN |
|
14 |
|
|
81.97201.0229 |
4 |
Hinge |
铰链 |
|
|
|
15 |
|
|
06.01470.3413 |
4 |
Hex bolt |
螺栓 |
|
M6x25Z2-SC-8.»-MAN183-A2C |
|
16 |
|
|
06.15190,0307 |
4 |
Washer |
垫片 |
|
6.4xl8xl.6-140HV-MAN183.Bl |
|
17 |
|
|
81.96410.0564 |
4 |
Cap |
盖 |
|
|
|
18 |
|
|
81.66912.0038 |
4 |
Angle |
工具箱角支架 |
|
|
|
|
|
|
81.19220.0684 |
2 |
Lengthend angle |
长角铁 |
|
|
|
19 |
|
|
06.01470.1510 |
8 |
Hex bolt |
螺栓 |
|
M8xl8Z2-8.8-MAN183-A2C |
|
20 |
|
|
06.15190.0309 |
8 |
Washer |
垫片 |
|
8.4x24x2-140HV-MAN183-Bl |
|
21 |
|
|
06.11064.2114 |
4 |
Hexagon nut |
螺母 |
|
M8-8-MAN183-Bl |
|
22 |
|
|
81.95501.6372 |
2 |
Bowden cable assembly |
工具箱锁拉线总成 |
|
|
|
23 |
|
|
81.97001.0518 |
1 |
Handle |
拉手 |
|
|
|
24 |
|
|
06.29050-0109 |
2 |
Lock washer |
锁紧垫片 |
|
|
|
25 |
|
|
81.97651.0111 |
2 |
Spring |
限位簧片 |
|
|
|
26 |
|
|
06.01283.4911 |
2 |
Hex bolt |
螺栓 |
|
M6xl6-8.g-MAN183-Bl |
|
27 |
|
|
06.15190.0307 |
2 |
Washer |
垫片 |
|
6.4xl8xl.6-140HV-MAN183-Bl |
|
28 |
|
|
06.11064.2112 |
2 |
Hex agon nut |
螺母 |
|
M6-8-MAN183-B1 |
|
29 |
|
|
81.66912.0033 |
1 |
Flap tool box left |
左工具箱盖 |
|
|
|
30 |
|
|
81.66912.0034 |
1 |
Flap tool box right |
右工具箱盖 |
|
|
|
31 |
|
|
81.66912.2543 |
2 |
Striker plate |
锁止销 |
|
|
|
32 |
|
|
06.24249.0074 |
8 |
Blind rivet |
空心铆钉 |
|
48x759 |
|
33 |
|
|
81.97488.2075 |
2 |
Angle 2 holes |
2孔角铁 |
|
|
|
34 |
|
|
06.24249.0073 |
4 |
Blind rivet |
空心铆钉 |
|
4.8x5-65 |
|
35 |
|
|
81.96601.2023 |
2 |
Gasket asbestos-free |
非石棉衬垫 |
|
|
|
36 |
|
|
06.01283.4909 |
8 |
Hex bolt |
螺栓 |
|
M6xl0-8.8-MAN183.Bl |
|
37 |
|
|
06.15191.0207 |
8 |
Washer |
垫片 |
|
6.4xl8xl.6-i4〇HV-MAN183-Bl |
|
38 |
|
|
81.66912.0145 |
1 |
Left tool box |
左工具箱 |
|
|
|
39 |
|
|
06.01470.0409 |
4 |
Hex bolt |
螺栓 |
|
M6X1M.8-MAN183-B1 |
|
40 |
|
|
06.15191.0207 |
4 |
Washer |
垫片 |
|
A6.4xl2xl.6-200HV-MAN183-B1 |
|
41 |
|
|
06.11184.0112 |
4 |
Hexagon nut |
螺母 |
|
M6-8-MAN183-B1 |
|
42 |
|
|
81.96001.0416 |
4 |
Grommet |
通气胶圈 |
|
|
|
43 |
|
|
81.97201.0252 |
4 |
Stop |
挡块 |
|
|
