0 |
|
|
AC71414400611 |
1 |

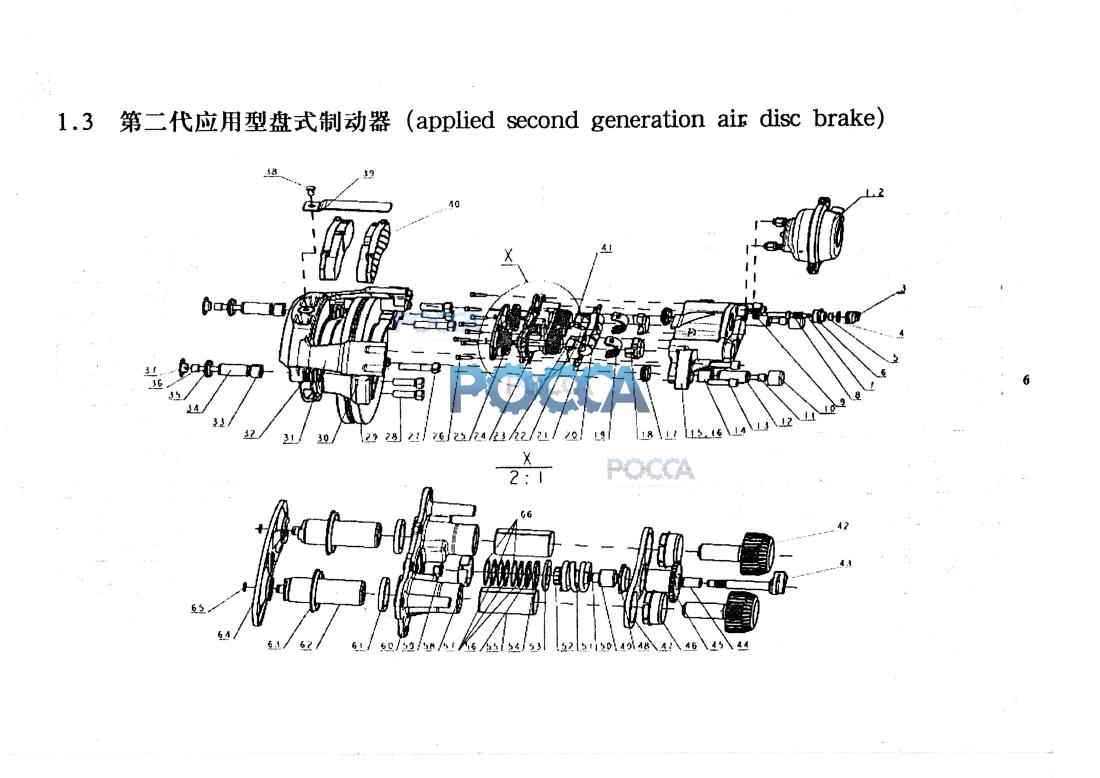

Second Generation Applied Air Disc |
第二代应用型盘式制动器 |
|
序号20、2丨只 允许调杠杆总 |
|
1 |
|
|
WG9100360410 |
1 |
Front-left Air Chamber 22 Inch |
前左制动气室22'万安汽车制动系统） |
|
除序号25、64 可单独更换外， |
|
2 |
|
|
WG9100360420 |
1 |
Front-right Air Chamber 22 Inch |
前右制动气室22"(万安汽车制动系统） |
|
|
|
3 |
|
|
WG9100443009 |
2 |
Manual Override Stem Cap |
橡胶帽(青岛海力威） |
|
|
|
4 |
|
|
AZ9100443010 |
2 |
Manual Override Stem Retainer |
手调挡圈 |
|
|
|
5 |
|
|
WG9100443011 |
2 |
Manual Override Stem Seal |
密封阁(宵岛海力威> |
|
|
|
6 |
|
|
WG9100443008 |
2 |
Manual Override Stem Saddle |
手调座(浙江国昌） |
|
|
|
7 |
|
|
WG9100443041 |
2 |
Manual Override Stem Shaft |
手调轴(恒信精密> |
|
|
|
8 |
|
|
WG9100443043 |
2 |
Manual Override Stem Spring |
弹簧(杭州弹簧） |
|
|
|
9 |
|
|
WG9100443042 |
2 |
Manual Override Stem Gear |
手调齿轮(m信精密） |
|
|
|
10 |
|
|
AZ9100443016 |
4 |
End Cap |
滑销盖(谢体侧） |
|
|
|
11 |
|
|
Q218B1450TF2 |
2 |
Guide Sleeve Bolt |
内六角圆柱头螺钉 |
|
|
|
12 |
|
|
AZ9100443013 |
2 |
Guide Sleeve |
滑销 |
|
|
|
13 |
|
|
Q218B1645TF2 |
8 |
Return Screw |
内六角圆柱头螺钉 |
|
|
|
14 |
|
|
WG9100443014 |
4 |
Housing Guide Sleeve Bush |
滑销衬套(钳体侧，荥成远海） |
|
|
|
15 |
|
|
AZ9100443301 |
1 |
Housing(left) |
钳体(左） |
|
|
|
16 |
|
|
AZ9100443401 |
1 |
Housing(right) |
钳体(右) |
|
|
|
17 |
|
|
WG9100443017 |
4 |
Housing Guide Sleeve Excluder |
滑销保护套(青岛海力威> |
|
|
|
18 |
|
|
AZ9100443023 |
4 |
Half Bearing Saddle |
半月轴承座 |
|
|
|
19 |
|
|
WG9100443022 |
4 |
Half Bearing Assembly |
半月轴承总成(常州光洋） |
|
|
|
|
|
|
AZ9100443500 |
2 |
Piston Assembly |
活塞总成 |
|
|
|
20 |
|
|
WG9100443031 |
2 |
Operation Shaft |
杠杆(台州山源) |
|
|
|
21 |
|
|
WG9100443033 |
4 |
Bearing |
衬垫(荣成远海) |
|
|
|
22 |
|
|
WG9100443034 |
4 |
Rivet |
柳钉(台州山源) |
|
|
|
23 |
|
|
AZ9100443021 |
4 |
Roller |
圆柱销 |
|
|
|
24 |
|
|
WG9100443024 |
2 |
Gasket |
橡胶垫片(青岛海力威） |
|
|
|
25 |
|
|
WG9100443027 |
4 |
Piston Dust Excluder |
活塞防尘套(青岛海力威） |
|
|
|
26 |
|
|
Q218B0825TF2 |
16 |
Piston Housing Assembly Bolt |
内六角圆柱头嫘钉 |
|
|
|
27 |
|
|
Q151B2070TF2 |
4 |
Brige Screw |
六角头螺栓 |
|
|
|
28 |
|
|
Q151B2050TF2 |
8 |
Carrier Screw |
六角头螺栓 |
|
|
|
29 |
|
|
WG9100443001 |
2 |
Disc |
制动盘(莱州华汽） |
|
|
|
30 |
|
|
AZ9100443002 |
2 |
Carrier |
托架 |
|
|
|
31 |
|
|
AZ9100443004 |
2 |
Brige |
钳体桥 |
|
|
|
32 |
|
|
WG9100443017 |
4 |
Brige Guide Sleeve Excluder |
滑销保护套(青岛海力威） |
|
|
|
33 |
|
|
WG9100443019 |
4 |
Brige Guide Sleeve Bush |
m销衬套(钳体桥侧，荣成远海） |
|
|
|
34 |
|
|
AZ9100443013 |
4 |
Bride Guide Sleeve |
mm |
|
|
|
35 |
|
|
WG9100443017 |
4 |
Brige Guide Sleeve Excluder |
滑销保护耷(青岛海力威> |
|
|
|
36 |
|
|
Q218B1450TF2 |
4 |
Guide Sleeve Bolt |
内六角圆柱头螺钉 |
|
|
|
37 |
|
|
AZ9100443018 |
4 |
End Cap |
滑销盖(钳体桥侧) |
|
|
|
38 |
|
|
Q150B1020TF2 |
2 |
Screw |
六角头螺检 |
|
|
|
39 |
|
|
AZ9100443006 |
2 |
Pad Retainer |
压板 |
|
|
|
40 |
|
|
WG9100443050 |
4 |
Pad Assembly |
制动块总成(REMSA> |
|
|
|
41 |
|
|
WG9100443032 |
2 |
Drive Pin |
驱动头(台州山源> |
|
|
|
42 |
|
|
WG9100443532 |
4 |
Tappet |
推杆(恒信精密） |
|
|
|
43 |
|
|
WG9100443511 |
2 |
Adjuster Shaft |
主调叉(扪信精密） |
|
|
|
44 |
|
|
WG9100443528 |
2 |
Adjuster Bush |
主调衬套(荣成远海） |
|
|
|
45 |
|
|
WG9100443512 |
2 |
Adjuster Gear |
主调齿轮(恒信精密） |
|
|
|
46 |
|
|
WG9100443525 |
4 |
Tappet Distance Sleeve |
推杆隔离套(宁海佳能） |
|
|
|
47 |
|
|
AZ9100443518 |
2 |
Adjuster Plate |
主调压板 |
|
|
|
48 |
|
|
WG9100443524 |
2 |
Adjuster Distance Sleeve |
主调隔离套(宁海佳能） |
|
|
|
49 |
|
|
WG9100443526 |
2 |
Unilateralism Clutch |
单向离合器(丨NA> |
|
|
|
50 |
|
|
WG9100443529 |
2 |
Clutch Shaft Bush |
离合器轴衬套(荣成远海） |
|
|
|
51 |
|
|
WG9100443519 |
2 |
Return Spring |
弹簧(杭州弹簧） |
|
|
|
52 |
|
|
WG9100443515 |
2 |
Overload Clutch Shaft |
过载离合器轴(恒信精密） |
|
|
|
53 |
|
|
WG9100443513 |
2 |
Saddle |
支掸座(杭州奇碟） |
|
|
|
54 |
|
|
WG9100443520 |
2 |
Thrust Bearing |
推力轴承总成(常州光洋） |
|
|
|
55 |
|
|
WG9100443530 |
4 |
Pistion Bush |
活塞衬套(荣成远海） |
|
|
|
56 |
|
|
WG9100443521 |
2 |
Bearing Backing Board |
轴承垫板(杭州奇碟） |
|
|
|
57 |
|
|
WG9100443517 |
6 |
Overload Clutch Innner Friction Piece |
过载离合器内摩擦片(杭州奇碟） |
|
|
|
58 |
|
|
WG9100443514 |
2 |
Overload Clutch Shell |
过载离合器壳(恒信精密） |
|
|
|
59 |
|
|
WG9100443536 |
2 |
FI008 Flanging Bearing |
F1008翻边轴承(荣成远海） |
|
|
|
60 |
|
|
AZ9100443527 |
2 |
Pistion Bracket |
活塞支架 |
|
|
|
61 |
|
|
WG9100443539 |
4 |
Seal |
油封(青岛海力威> |
|
|
|
62 |
|
|
WG9100443531 |
4 |
Pistion |
活塞(玉环万邦〉 |
|
|
|
63 |
|
|
WG9100443534 |
4 |
Exluder Clamping Ring |
防尘套历环(青岛海力威） |
|
|
|
64 |
|
|
AZ9100443533 |
2 |
Spreader Plate |
整体推盘 |
|
|
|
65 |
|
|
Q43112 |
4 |
Circlip for Shaft |
轴用弹性挡圈 |
|
|
|
66 |
|
|
WG9100443516 |
6 |
Exterior Overload Clutch Friction Piece |
过载离合器外摩擦片(杭州奇碟） |
|
|
