0 |
|
|
AC71414100920 |
1 |

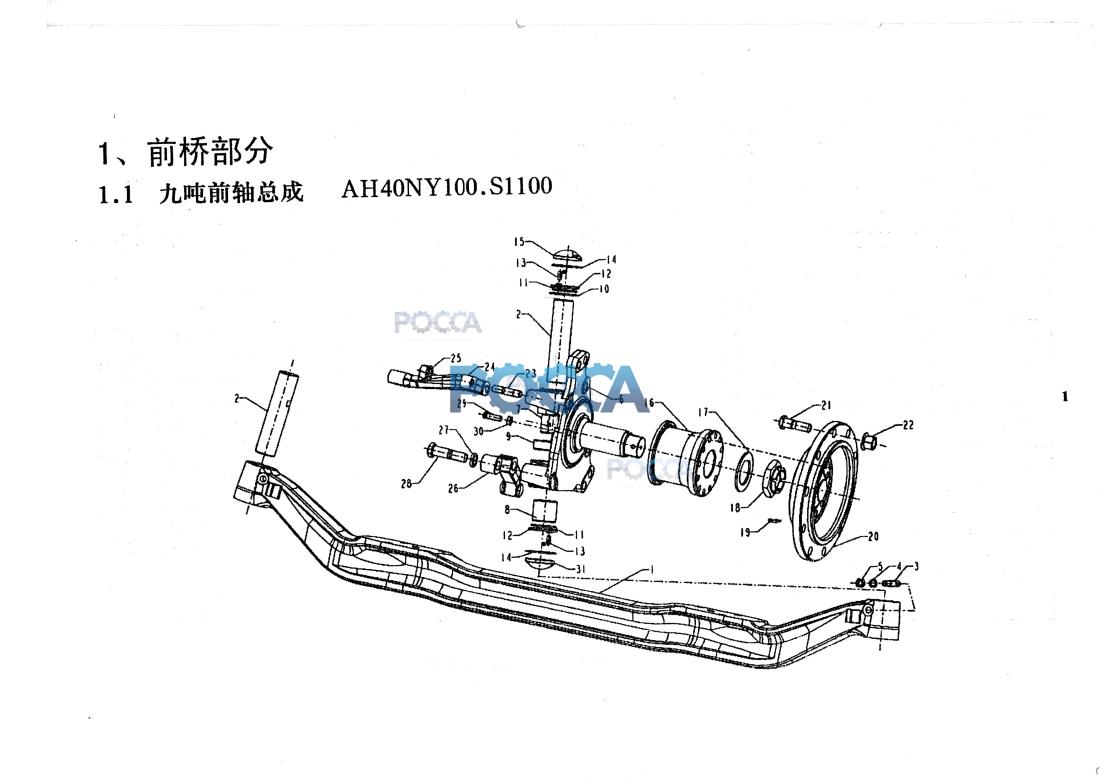

9T front steering axle |
9T前轴总成 |
S^^Omm |
* - |
|
1 |
|
|
6.1.6.11(101).jpg |
1 |
Front axle |
前轴 |
|
|
|
2 |
|
|
AZ9925410052 |
2 |
Knuckle pin |
转向节销 |
|
|
|
3 |
Шплинт шкворня с гайкой HOWO A7 (Хово А7) AZ9100411005 |
0 |
AZ9100411005 |
2 |
limitative blot |
主销限位嫘钉 |
|
|
|
4 |
|
|
Q40314 |
2 |
Spring shim |
弹簧垫圈 |
|
|
|
5 |
|
|
Q340B14T13F2 |
2 |
Nut |
1型六角螺母 |
|
|
|
6 |
|
|
AZ9925410071 |
1 |
Left knuckle |
转向节(左〉 |
|
|
|
6a |
|
|
AZ9925410070 |
1 |
Right knuckle |
转向节(右） |
|
|
|
7 |
|
|
WG9925410050 |
2 |
Bushing |
衬套 |
|
|
|
8 |
|
|
WG9925410055 |
2 |
Bushing |
衬套 |
|
|
|
9 |
|
|
WG9925410090 |
2 |
Bearing |
推力滚柱轴承 |
|
|
|
10 |
|
|
AZ9925410014 |
nB |
Shim |
垫圈 |
|
|
|
11 |
|
|
AZ9925410265 |
4 |
nOM ring |
O形密封圈 |
|
|
|
12 |
|
|
AZ9925410075 |
4 |
Cap |
主销盖 |
|
|
|
13 |
|
|
Q701B70 |
4 |
Grease fitting |
弯颈油脂嘴 |
|
|
|
14 |
|
|
Q43075 |
4 |
Spacers |
孔用弹性档阐 |
|
|
|
15 |
|
|
AZ9925410080 |
4 |
Dustproof Cap |
主销防尘M |
|
|
|
16 |
|
|
WG9925410130 |
2 |
Wheel-end bearing range |
轮毂轴承单元 |
|
|
|
17 |
|
|
AZ9925410068 |
2 |
Washer |
挡圈 |
|
|
|
18 |
|
|
AZ9925410056 |
2 |
Knuckle lock nut |
转向节锁紧螺母 |
|
|
|
19 |
|
|
Q5006380 |
2 |
Cotter pin |
开口销 |
|
|
|
20 |
|
|
AZ9925410020 |
2 |
Front hub |
前轮榖 |
|
|
|
21 |
Болт колесный передний с гайкой HOWO A7 (Хово А7) WG9100410212 |
0 |
WG9100410212 |
20 |
Wheel boll |
车轮螺栓 |
|
|
|
22 |
Гайка колесная передней ступицы HOWO (Хово) WG9003889160 |
2
|
WG9003889160 |
20 |
Nut |
车轮螺母 |
|
|
|
23 |
|
|
WG880410060 |
2 |
Stud |
双头螺柱 |
|
|
|
24 |
|
|
AZ9719410001 |
1 |
Steering knuckle Arm |
转向节臂 |
|
|
|
25 |
Гайка передней стремянки рессоры HOWO (Хово) SHAANXI (Шанкси) SHACMAN (Шакман) 190003888626 |
12
|
190003888626 |
2 |
Nut fastener |
自锁螺母 |
|
|
|
26 |
Сошка поперечной рулевой тяги левая HOWO (Хово) А7 AZ9925410045 |
0 |
AZ9925410045 |
1 |
Tie Rod Arm (left) |
转向横拉杆臂（左） |
|
|
|
26a |
|
|
AZ9925410046 |
1 |
Tie rod arni(right) |
转向横拉杆臂（右） |
|
|
|
27 |
|
|
Q40324 |
4 |
Spring shim |
弹费垫圈 |
|
|
|
28 |
|
|
AZ9925410035 |
4 |
Cap screw |
六角头螺栓 |
|
|
|
29 |
|
|
1880410059 |
2 |
Adjusting bolt |
调粮螺钉 |
|
|
|
30 |
|
|
Q351B14T15 |
2 |
Nut |
六角沏螺母 |
|
|
