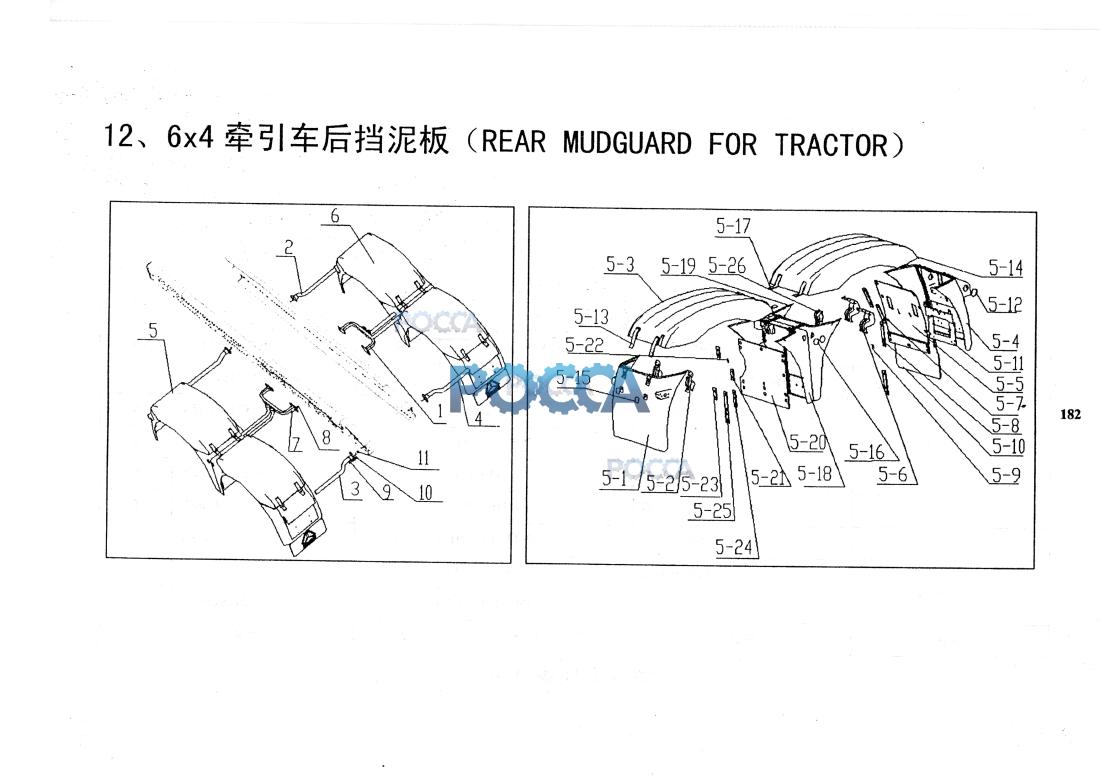

Задние брызговики. Тягач. HOWO (Хово) HOWO A7 28 Гр. Рама
Крепление бампера. Крюк буксирный.
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|---|---|---|---|---|---|---|---|
| 1 | AZ9925950014 | 2 | 后挡泥板中间支架总成 | Mid beam | ||||
| 2 | AZ9925950025 | 2 | p挡泥板盼支架总成 | Front beam | ||||
| 3 | AZ9925950026 | 1 | 左后支架总成 | Rear left beam | ||||
| 4 | AZ9925950027 | 1 | 右后支架总成 | Rear right beam | ||||
| 5 | WG9925950120 | 1 | 双后桥挡泥板左总成 | Left Mudguard for double axle | ||||
| 6 | WG9925950121 | 1 | 双后桥挡泥板右总成 | Right Mudguard for double axle | ||||
| 7 | Q150B1240 | 12 | 六角头螺栓 | bolt | ||||
| 8 | Q33212 | 12 | 2型全金属六角锁紧螺母 | nut | ||||
| 9 | Q150B1445 | 8 | 六角头螺栓 | bolt | ||||
| 10 | Q33214 | 8 | 2型全金属六角锁紧螺母 | nut | ||||
| 11 | Q33216 | 4 | 自锁螺母 | nut | ||||
| 5-1 | WG9925950130/1 | 1 | 前轮罩(左） | Front Left Mudguard | ||||
| 5-2 | WG9925950132/1 | 2 | 前夹箍总成 | Fron t Clamping Device | ||||
| 5-3 | WG9925950137/1 | 2 | 轮罩上盖 | Top Cap for Mudguard | ||||
| 5-4 | WG9925950138/1 | 1 | 后轮罩 | Rear Mudguard | ||||
| 5-5 | WG9925950139/1 | 1 | 毛板 | Rear Cover Board | ||||
| 5-6 | WG9925950140/1 | 2 | 后夹箍总成 | Rear Clamping Device | ||||
| 5-7 | WG9925950143/1 | 2 | 后泥板压板1 | Rear Pressure Plate I | ||||
| 5-8 | WG9925950144/1 | 2 | 后泥板压板2 | Rear Pressure Plate II | ||||
| 5-9 | WG9925950145/1* | 1 | 后泥板压板3 | Rear Pressure Plate III | ||||
| 5-10 | WG9925950146/1 | 1 | 标志板 | Sign Board | ||||
| 5-11 | WG9925950147/1 | 1 | 尾灯支架 | Taillight Bracket | ||||
| 5-12 | WG9925950148/1 | 1 | 堵盖2 | Cover II | ||||
| 5-13 | WG9925950149/1 | 2 | 橡胶拉带1 | Rubber Drawstring I | ||||
| 5-14 | WG992S950150/1 | 2 | 橡胶拉带3 | Rubber Drawstring III | ||||
| 5-15 | WG9925950151/1 | 2 | 前罩堵盖 | Cover for Front Mudguard | ||||
| 5-16 | WG9925950152/1 | 2 | 堵盖1 | Cover 1 | ||||
| 5-17 | WG9925950153/1 | 4 | 橡胶拉带2 | Rubber Drawstring II | ||||
| 5-18 | WG9925950154/1 | 1 | 中轮罩1 | Mid Mudguard I | ||||
| 5-19 | WG9925950155/1 | 1 | 中轮罩2 | Mid Mudguard II | ||||
| 5-20 | WG9925950156/1 | 2 | 中泥板平板 | Mid flat Board | ||||
| 5-21 | WG9925950158/1 | 4 | 中泥板压板1 | Mid Pressure Plate I | ||||
| 5-22 | WG9925950159/1 | 2 | 中泥板压板2 | Mid Pressure Plate II | ||||
| 5-23 | WG9925950160/1 | 2 | 中泥板压板3 | Mid Pressure Plate III | ||||
| 5-24 | WG9925950161/1 | 2 | 中泥板压板4 | Mid Pressure Plate IV | ||||
| 5-25 | WG9925950162/1 | 2 | 中泥板压板5 | Mid Pressure Plate V | ||||
| 5-26 | WG9925950164/1 | 4 | 中夹箍总成 | Mid Clamping Device |
