Редуктор заднего моста SHAANXI (Шанкси) SHACMAN F2000 24 Гр. Задний и средний мосты

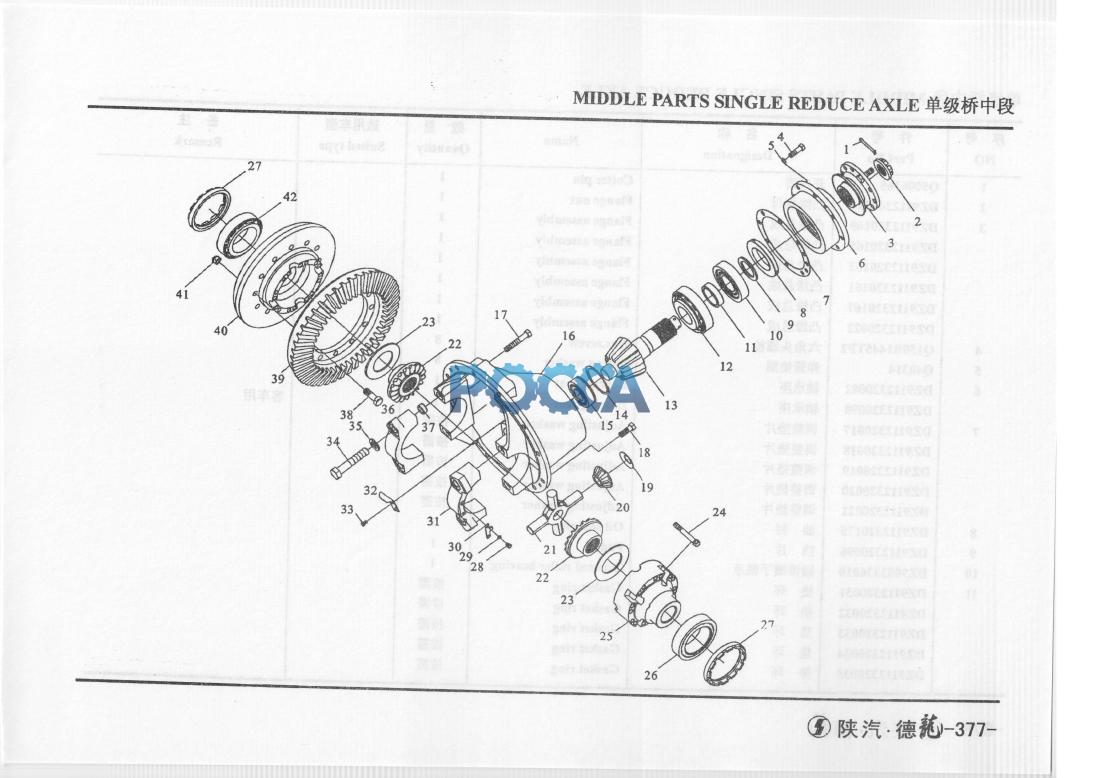

Механизм привода среднего моста III.
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|---|---|---|---|---|---|---|---|
| 1 | Q5006365 | 1 | 开口销 | Cotter pin | ||||
| 2 | DZ9112340084 | 1 | 凸缘螺母 | Flange nut | ||||
| 3 | DZ9112320169 | 1 | 凸缘总成 | Flange assembly | ||||
| 3 | DZ9112320165 | 1 | 凸缘总成 | Flange assembly | ||||
| 3 | DZ9112320163 | 1 | 凸缘总成 | Flange assembly | ||||
| 3 | DZ9112320161 | 1 | 凸缘总成 | Flange assembly | ||||
| 3 | DZ9112320167 | 1 | 凸缘总成 | Flange assembly | ||||
| 3 | DZ9112320022 | 1 | 凸缘总成 | Flange assembly | ||||
| 4 | Q150B1445TF2 | 8 | 六角头螺栓 | Hex.screw | ||||
| 5 | Q40314 | 8 | 弹簧垫圈 | Spring washer | ||||
| 6 | DZ9112320082 | 1 | 轴承座 | Bearing seat | ||||
| 7 | DZ9112320098 | 1 | 轴承座 | Bearing seat | 客车用 | |||
| 7 | DZ9112320017 | 按需 | 调整垫片 | Adjusting washer | ||||
| 7 | DZ9112320018 | 按需 | 调整垫片 | Adjusting washer | ||||
| 7 | DZ9112320019 | 按需 | 调整垫片 | Adjusting washer | ||||
| 7 | DZ9112320020 | 按需 | 调整塾片 | Adjusting washer | ||||
| 7 | DZ9112320021 | 按需 | 调整垫片 | Adjusting washer | ||||
| 8 | DZ9112320175 | 1 | 油封 | Oil seal ring | ||||
| 9 | DZ9112320096 | 1 | 挡片 | Pad | ||||
| 10 | DZ9003326010 | 1 | 圆锥滚子轴承 | Tapered roller bearing | ||||
| 11 | DZ9112320031 | 按需 | 垫环 | Gasket ring | ||||
| 11 | DZ9112320032 | 按需 | 垫环 | Gasket ring | ||||
| 11 | DZ9U2320033 | 按需 | 垫环 | Gasket ring | ||||
| 11 | DZ9112320034 | 按需 | 垫环 | Gasket ring | ||||
| 11 | DZ9112320035 | 按需 | 垫环 | Gasket ring | ||||
| 11 | DZ9112320036 | 环 | Gasket ring | 按需 | ||||
| 11 | DZ9U2320037 | 环 | Gasket ring | 按需 | ||||
| 11 | DZ91I2320038 | 环 | Gasket ring | 按需 | ||||
| 11 | DZ9112320039 | 环 | Gasket ring | 按需 | ||||
| 11 | DZ9112320039 | 环 | Gasket ring | 按需 | ||||
| 11 | DZ9112320040 | 环 | Gasket ring | 按需 | ||||
| 11 | DZ9112320041 | 环 | Gasket ring | 按需 | ||||
| 11 | DZ9112320042 | 环 | Gasket ring | 按需 | ||||
| 11 | DZ9112320043 | 环 | Gasket ring | 按需 | ||||
| 11 | DZ9112320044 | 环 | Gasket ring | 按需 | ||||
| 11 | DZ9112320045 | 环 | Gasket ring | 按需 | ||||
| 11 | DZ9112320046 | 环 | Gasket ring | 按需 | ||||
| 11 | DZ9112320047 | 环 | Gasket ring | 按需 | ||||
| 11 | DZ9112320048 | 环 | Gasket ring | 按需 | ||||
| 11 | DZ9112320049 | 环 | Gasket ring | 按需 | ||||
| 11 | DZ9112320050 | 环 | Gasket ring | 按需 | ||||
| 11 | DZ9112320051 | 环 | Gasket ring | 按需 | ||||
| 11 | DZ9112320052 | 环 | Gasket ring | 按需 | ||||
| 11 | DZ9112320053 | 环 | Gasket ring | 按需 | ||||
| 11 | DZ9112320054 | 环 | Gasket ring | 按需 | ||||
| 11 | DZ9112320055 | 环 | Gasket ring | 按需 | ||||
| 11 | DZ9112320056 | 环 | Gasket ring | 按需 | ||||
| 11 | DZ9112320057 | 环 | Gasket ring | 按需 | ||||
| 11 | DZ9112320058 | 环 | Gasket ring | 按需 | ||||
| 11 | DZ9112320059 | 环 | Gasket ring | 按需 | ||||
| 11 | DZ9112320060 | 按需 | 垫环 | Gasket ring | ||||
| 11 | DZ9112320061 | 按需 | 垫环 | Gasket ring | ||||
| 11 | DZ9112320062 | 按需 | 垫环 | Gasket ring | ||||
| 12 | DZ9003326011 | 1 | 圆锥滚子轴承 | Tapered roller bearing | ||||
| 13 | DZ9112320087 | 1 | 主动锥齿轮 | Active bevel gear | 用于i=4.3 | |||
| 13 | DZ9112320094 | 1 | 主动锥齿轮 | Active bevel gear | 用于 i=4.778 | |||
| 13 | DZ9112320200 | 1 | 主动锥齿轮 | Active bevel gear | 用于 i=5.375 | |||
| 13 | DZ9112320202 | 1 | 主动锥齿轮 | Active bevel gear | 用于 i=3.909 | |||
| 13 | DZ9112320204 | 1 | 主动锥齿轮 | Active bevel gear | 用于 i=3.583 | |||
| 13 | DZ9U2320206 | 1 | 主动锥齿轮 | Active bevel gear | 用于 i=5.857 | |||
| 14 | Q433100 | 1 | 弹性挡圈 | Snap ring | ||||
| 15 | DZ9003323010 | 1 | 圆柱滚子轴承 | Cylinder roller connecting | ||||
| 16 | DZ911232007S | 1 | 减速器壳 | Final drive housing | ||||
| 17 | Q150B1690TF2 | 4 | 六角头螺栓 | Hex.screw | ||||
| 18 | Q150B1645TF2 | 8 | 六角头螺栓 | Hex.screw | ||||
| 19 | DZ9112320081 | 4 | 行星齿轮垫片 | Planet gear washer | ||||
| 20 | DZ9112320089 | 4 | 行星齿轮 | Planet gear | ||||
| 21 | DZ9112320011 | 1 | 十字轴 | cross axle | ||||
| 22 | DZ9112320088 | 2 | 半轴齿轮 | Axle shaft gear | ||||
| 23 | DZ91I2320012 | 按需 | 半轴齿轮垫片 | Axle shaft gear washer | ||||
| 23 | DZ9112320013 | 按需 | 半轴齿轮垫片 | Axle shaft gear washer | ||||
| 23 | DZ9112320014 | 按需 | 半轴齿轮垫片 | Axle shaft gear washer | ||||
| 23 | DZ9112320015 | 按需 | 半轴齿轮垫片 | Axle shaft gear washer | ||||
| 23 | DZ9112320016 | 按需 | 半轴齿轮垫片 | Axle shaft gear washer | ||||
| 24 | DZ9112320086 | 16 | 六角头螺栓 | Hex.screw | ||||
| 25 | DZ9112320078 | 1 | 差速器壳（右） | Differential housing (right) | ||||
| 26 | DZ9003326013 | 1 | 圆锥滚子轴承 | Tapered roller bearing | ||||
| 27 | DZ9112320076 | 2 | 调整螺母 | Adjusting nut | ||||
| 28 | Q150B0816 | 4 | 六角头螺栓 | Hex.screw | ||||
| 29 | Q40308 | 4 | 弹簧垫圈 | Spring washer | ||||
| 30 | DZ91I2320083 | 4 | 止动片 | Stop plate | ||||
| 31 | DZ9112320072 | 1 | 差速器轴承盖（右） | Differential bearing cover (right) | ||||
| 32 | DZ9112320099 | 1 | 挡油罩 | Oil baffle disc | 客车用to bus | |||
| 33 | Q150B0816 | 2 | 六角头螺栓 | Hex.screw | 客车用to bus | |||
| 34 | DZ9112320085 | 4 | 六角头螺栓 | Hex.screw | ||||
| 35 | Q40124 | 4 | 平垫圈 | Flat washer | ||||
| 36 | DZ9112320071 | 1 | 差速器轴承盖（左） | Differential bearing cover (left) | ||||
| 37 | DZ9112320073 | 4 | 定位套 | Locating cow | ||||
| 38 | DZ91I2320092 | 12 | 六角头螺栓 | Bolt | ||||
| 39 | DZ9112320091 | 1 | 从动锥齿轮 | Passive taper gear | 用于i=4.3 | |||
| 39 | DZ9112320095 | 1 | 从动锥齿轮 | Passive taper gear | 用于 i=4.778 | |||
| 39 | DZ9112320201 | 1 | 从动锥齿轮 | Passive taper gear | 用于 i=5.37S | |||
| 39 | DZ9112320203 | 1 | 从动锥齿轮 | Passive taper gear | 用于 i=3.909 | |||
| 39 | DZ9112320205 | 1 | 从动锥齿轮 | Passive taper gear | 用于 i=3.583 | |||
| 39 | DZ9112320207 | 1 | 从动锥齿轮 | Passive taper gear | 用于 i=5.857 | |||
| 40 | DZ9112320077 | 1 | 差速器壳（左） | Differential housing (left) | 用于 i=4.3, 3.909，3.583 | |||
| 40 | DZ9112320079 | 1 | 差速器壳（左） | Differential chousing (left) | 用于 i=4.778, 5.375, 5.857 | |||
| 41 | 190003888466 | 12 | 自锁螺母 | Nut | ||||
| 42 | DZ9003326012 | 1 | 圆锥滚子轴承 | Tapered roller bearing |
