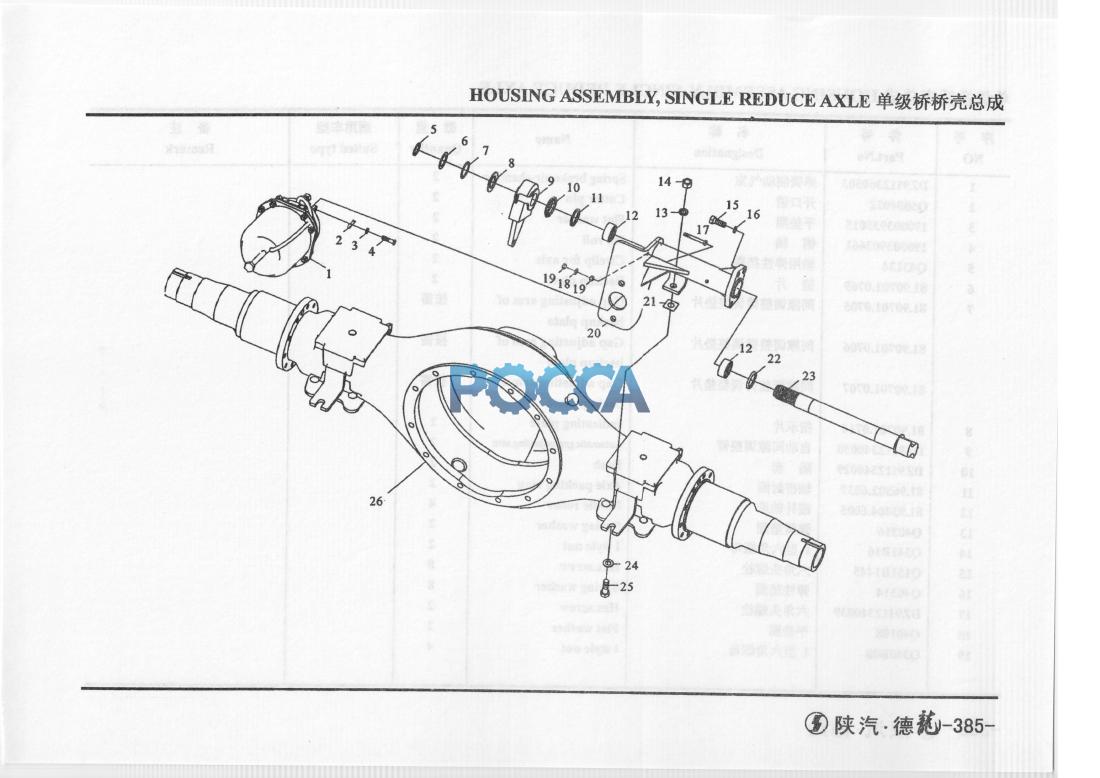

1 |
|
|
DZ9112360303 |
2 |
弹簧制动气室 |
Spring brake air-chamber |
|
|
|
2 |
|
|
Q5004022 |
2 |
开口销 |
Cotter pin |
|
|
|
3 |
|
|
190003935015 |
2 |
平垫圈 |
Flat washer |
|
|
|
4 |
|
|
190003903661 |
2 |
销轴 |
Pin roll |
|
|
|
5 |
|
|
Q43134 |
2 |
轴用弹性挡圈 |
Circlip for axle |
|
|
|
6 |
|
|
81.90701.0769 |
2 |
垫片 |
Backup plate |
|
|
|
7 |
|
|
81.90701.0705 |
按需 |
间隙调整臂调整垫片 |
Gap adjusting arm of backup plate |
|
|
|
7 |
|
|
81.90701.0706 |
按需 |
间隙调整臂调整垫片 |
Gap adjusting arm of backup plate |
|
|
|
7 |
|
|
81.90701.0707 |
按需 |
间隙调整臂调整垫片 |
Gap adjusting arm of backup plate |
|
|
|
8 |
|
|
81.90701.0714 |
2 |
指示片 |
Indicating plate |
|
|
|
9 |
|
|
DZ9112340030 |
2 |
自动间隙调整臂 |
Automatic gap adjusting arm |
|
|
|
10 |
|
|
DZ9112340029 |
2 |
隔套 |
Bush |
|
|
|
11 |
|
|
81.96502.6039 |
2 |
轴密封圈 |
Axle packing ring |
|
|
|
12 |
|
|
81.93404.6005 |
4 |
滚针轴承 |
Needle roller |
|
|
|
13 |
|
|
Q40316 |
2 |
弹簧垫圈 |
Spring washer |
|
|
|
14 |
|
|
Q341B16 |
2 |
1型六角螺母 |
I style nut |
|
|
|
15 |
|
|
Q151B1445 |
8 |
六角头螺栓_ |
Hex.screw |
|
|
|
16 |
|
|
Q40314 |
8 |
弹性垫圈 |
Spring washer |
|
|
|
17 |
|
|
DZ9112340039 |
2 |
六角头螺栓 |
Hex.screw |
|
|
|
18 |
|
|
Q40108 |
2 |
平垫圈 |
Flat washer |
|
|
|
19 |
|
|
Q340B08 |
4 |
I型六角螺母 |
I style nut |
|
|
|
20 |
|
|
DZ9112340028 |
1 |
制动凸轮轴套总成（右） |
Brake camshaft boss assembly (right) |
|
|
|
20 |
|
|
DZ9112340027 |
1 |
制动凸轮轴套总成（左） |
Brake camshaft boss assembly (left) |
|
|
|
21 |
|
|
DZ9112340170 |
按需 |
调整垫圈 |
Adjusting washer |
|
|
|
21 |
|
|
DZ9112340175 |
按需 |
调整垫圈 |
Adjusting washer |
|
|
|
22 |
|
|
81.96502.6040 |
2 |
轴密封圈 |
Axle seal ring |
|
|
|
23 |
|
|
DZ9I12340026 |
1 |
制动凸轮轴（右） |
Brake camshaft (right) |
|
|
|
23 |
|
|
DZ9I12340027 |
1 |
制动凸轮轴（左） |
Brake camshaft (left) |
|
|
|
24 |
|
|
Q40116 |
2 |
平垫圈 |
Flat washer |
|
|
|
25 |
|
|
Q151B1645 |
2 |
六角头螺栓 |
Hex.screw |
|
|
|
26 |
|
|
DZ9112330080 |
1 |
后桥壳总成 |
Rear axle housing assembly |
|
|
|
26 |
|
|
DZ9112330130 |
1 |
后桥壳总成 |
Rear axle housing assembly |
用于客车(to bus) |
|
