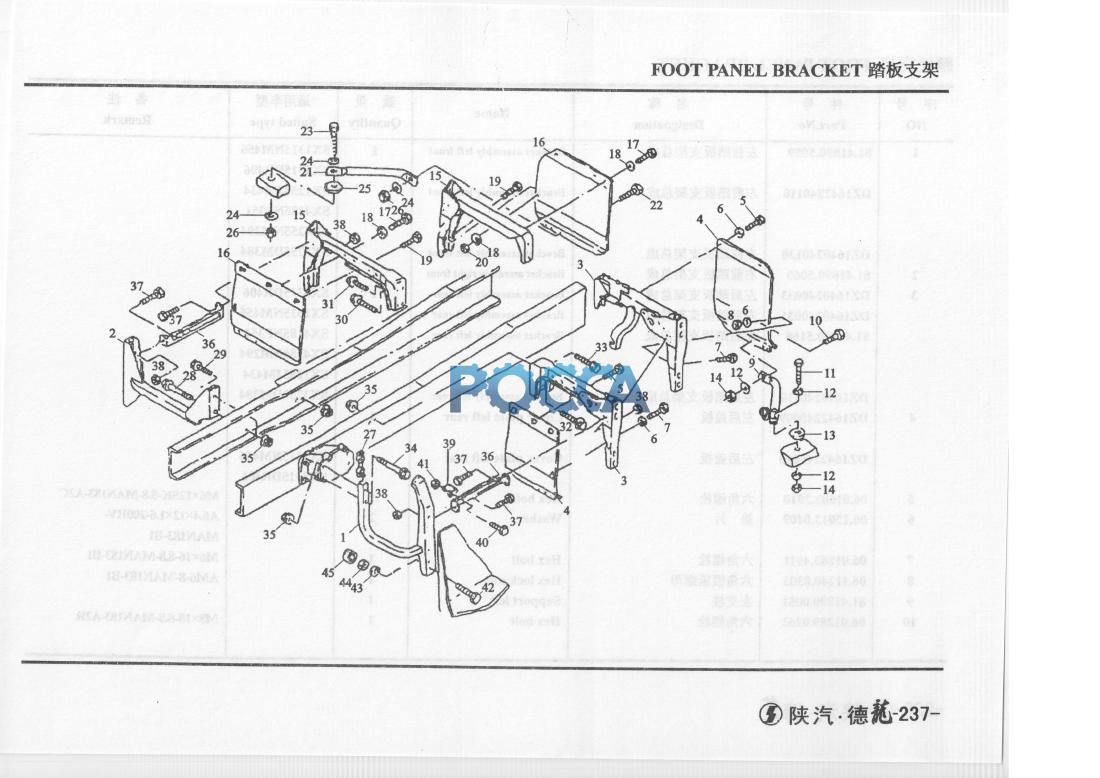

1 |
|
|
81.41890.5059 |
1 |
Bracket assembly left front |
左前踏板支架总成 |
SX1315NM456 |
|
|
|
|
|
|
|
|
|
SX3315DR406 |
|
|
|
|
|
DZ1642240110 |
|
Bracket assembly left front |
左前踏板支架总成 |
SX1255JM434 |
|
|
|
|
|
|
|
|
|
SX4185NP351 |
|
|
|
|
|
|
|
|
|
SX4255NM294 |
|
|
|
|
|
DZ1640240130 |
|
Bracket assembly left front |
左前踏板支架总成 |
SX3255DM384 |
|
|
2 |
|
|
81.41890.5060 |
1 |
Bracket assembly right front |
右前踏板支架总成 |
|
|
|
3 |
|
|
DZ1640240033 |
1 |
Bracket assembly left rear |
左后踏板支架总成 |
SX3315DR406 |
|
|
|
|
|
DZ1640240031 |
|
Bracket assembly left rear |
左后踏板支架总成 |
SX1315NM456 |
|
|
|
|
|
81.41890.5168 |
|
Bracket assembly left rear |
左后踏板支架总成 |
SX4185NP351 |
|
|
|
|
|
|
|
|
|
SX4255NM294 |
|
|
|
|
|
|
|
|
|
SX1255JM434 |
|
|
|
|
|
DZ1640240110 |
|
Bracket assembly left rear |
左后踏板支架总成 |
SX3255DM384 |
|
|
4 |
|
|
DZ1642240009 |
1 |
Cover plate left rear |
左后盖板 |
|
|
|
|
|
|
DZ1642240013 |
|
Cover plate left rear |
左后盖板 |
SX1315NM456 |
|
|
|
|
|
|
|
|
|
SX3315DR406 |
|
|
5 |
|
|
06.01303.2910 |
5 |
Hex bolt |
六角螺栓 |
|
M6xl2SK-8.^MAN183-A2C |
|
6 |
|
|
06.15013.0409 |
2 |
Washer |
垫片 |
|
A6.4X12X1.6-200HV-MAN183-B1 |
|
7 |
|
|
06.01283.4911 |
1 |
Hex bolt |
六角螺栓 |
|
M6xl6-8.8-MAN183-Bl |
|
8 |
|
|
06.11240.0303 |
1 |
Hex lock nut |
六角锁紧螺母 |
|
AM6-8-MAN183-B1 |
|
9 |
|
|
81.41890.0051 |
1 |
Support left |
左支柱 |
|
|
|
10 |
|
|
06.01289.0262 |
1 |
Hex bolt |
六角螺栓 •nr |
|
M8xl8-8.8-MAN183-A2R |
|
11 |
|
|
06.01289.0264 |
1 |
Hex bolt |
六角螺栓 |
|
M8x28-8.»-MAN183-A2R |
|
12 |
|
|
06.15019.0084 |
4 |
Washer |
垫片 |
|
A&4X16XL6-200HV-MAN183-B4 |
|
13 |
|
|
06.15190.0409 |
1 |
Washer |
垫片 |
|
8.4x24x2-140HV-MAN183-B4 |
|
14 |
|
|
06.11069.0158 |
2 |
Hexagon nut |
六角螺母 |
|
M8-8-MAN185-B4 |
|
15 |
|
|
DZ1640240030 |
1 |
Bracket assembly right rear |
右后踏板支架总成 |
SX1255JM434 |
|
|
|
|
|
|
|
|
|
SX4255NM294 |
|
|
|
|
|
|
|
|
|
SX4185NP351 |
|
|
|
|
|
DZ1640240032 |
|
Bracket assembly right rear |
右后踏板支架总成 |
SX1315NM456 |
|
|
|
|
|
DZ1640240034 |
|
Bracket assembly right rear |
右后踏板支架总成 |
SX3315DR406 |
|
|
|
|
|
DZ1640240120 |
|
Bracket assembly right rear |
右后踏板支架总成 |
SX3255DM384 |
|
|
16 |
|
|
81.41890.0008 |
1 |
Cover plate right rear |
右后盖板总成 |
SX3255DM384 |
|
|
|
|
|
DZ1642240014 |
|
Cover plate right rear |
右后盖板总成 |
|
|
|
17 |
|
|
06.01303.2910 |
3 |
Hex bolt |
六角螺栓 |
|
M6xl2SK-8.S-MAN183-A2C |
|
18 |
|
|
06.15013.0409 |
5 |
Washer |
垫片 |
|
A6.4xl2xL6-200HV- |
|
|
|
|
|
|
|
|
|
MAN183-B1 |
|
19 |
|
|
06.01283.4911 |
2 |
Hex bolt |
六角螺栓 |
|
M6xl6-8.8-MAN183-Bl |
|
20 |
|
|
06.11240.0303 |
2 |
Hex lock nut |
六角螺栓 |
|
AM16-8-MAN183-B1 |
|
21 |
|
|
81.41890.0050 |
1 |
Support right |
右支柱 |
|
|
|
22 |
|
|
06.01289.0262 |
1 |
Hex bolt |
六角螺栓 |
|
M8xl88.8-MAN183-A2R |
|
23 |
|
|
06.01289.0264 |
1 |
Hex bolt |
六角螺栓 |
|
|
|
24 |
|
|
06.15019.0084 |
4 |
Washer |
垫片 |
|
|
|
25 |
|
|
06.15190.0409 |
1 |
Washer |
垫片 |
|
|
|
26 |
|
|
06.11069.0158 |
2 |
Hexagon nut |
六角螺母 |
|
|
|
27 |
|
|
81.41820.5061 |
1 |
Packing assembly |
衬垫总成 |
|
|
|
28 |
|
|
06.02815.8934 |
1 |
Hex lock screw |
六角锁紧螺钉 |
|
|
|
29 |
|
|
06.02813.4914 |
1 |
Hex lock screw |
六角锁紧螺钉 |
|
|
|
30 |
|
|
06.02813.4913 |
2 |
Hex lock screw |
六角锁紧螺钉 |
|
|
|
31 |
|
|
06.02813.4911 |
2 |
Hex lock screw |
六角锁紧螺钉 |
|
|
|
32 |
|
|
06.02813.4913 |
2 |
Hex lock screw |
六角锁紧螺钉 |
|
|
|
33 |
|
|
06.02813.4911 |
2 |
Hex lock screw |
六角锁紧螺钉 |
|
|
|
34 |
|
|
06.02813.4918 |
2 |
Hex lock screw |
六角锁紧螺钉 |
|
|
|
35 |
|
|
06.11251.2005 |
8 |
Hex lock nut |
六角锁紧螺钉 |
|
|
|
36 |
|
|
81.41890.0044 |
2 |
Support |
支座 |
|
|
|
37 |
|
|
06.01283.5112 |
6 |
Hex bolt |
六角螺栓 |
|
|
|
38 |
|
|
06.11251.2018 |
6 |
Hex lock nut |
六角锁紧螺母 |
|
|
|
39 |
|
|
81.27421.0151 |
2 |
Sensor |
压力传感器 |
|
|
|
40 |
|
|
06.01283.5112 |
2 |
Hex bolt |
六角螺栓 |
|
|
|
41 |
|
|
06.11240.0404 |
2 |
Hex lock nut |
六角锁紧螺母 |
|
|
|
|
|
|
06.11251.2018 |
2 |
Hex lock nut |
六角锁紧螺母 |
|
|
|
42 |
|
|
06.01283.5215 |
8 |
Hex bolt |
六角螺母 |
|
|
|
43 |
|
|
06.15199.0016 |
8 |
Washer |
垫圈 |
|
|
|
44 |
|
|
06.11240.0406 |
8 |
Hex lock nut |
六角锁紧螺母 |
|
|
|
45 |
|
|
88.96002.0027 |
8 |
Cap |
盖 |
|
|
