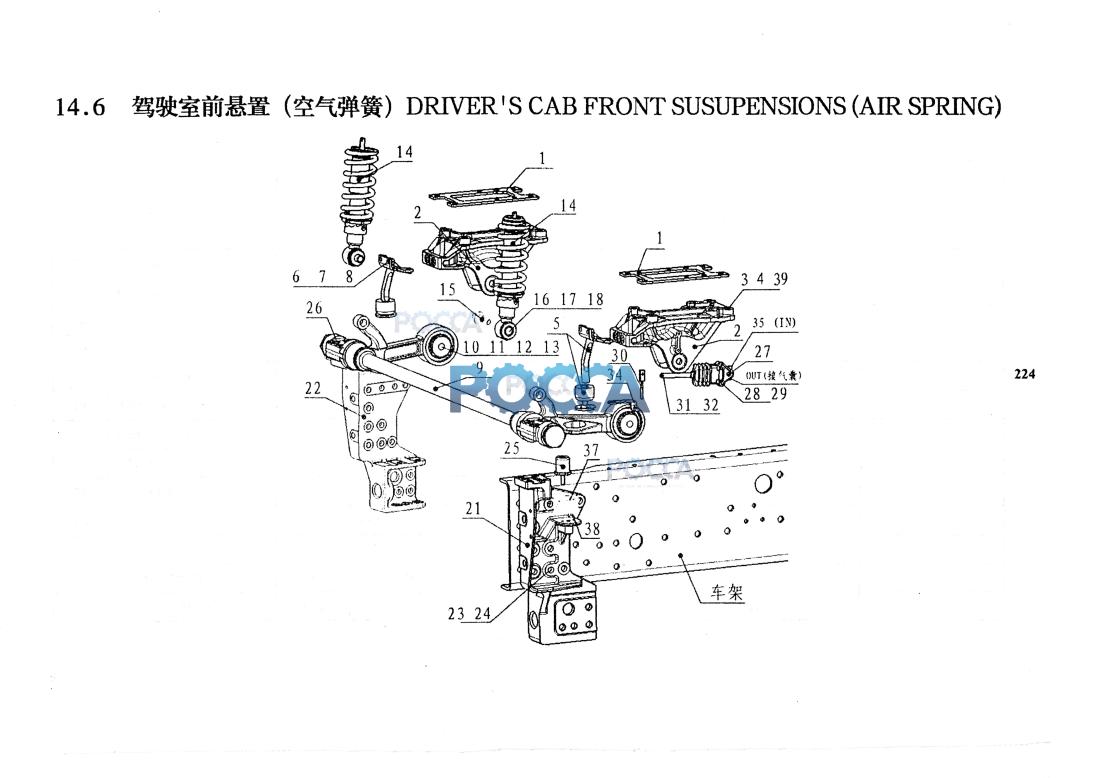

1 |
|
|
AZ1664430087 |
2 |
热板 |
|
Plate |
|
|
2 |
|
|
AZ1664430041 |
2 |
驾驶室I'i'if悬过渡支架 |
|
Front susupension tninsilional bracket |
|
|
3 |
|
|
Q1841470 |
里2 |
六角法兰面螺栓 |
|
Screw |
|
|
4 |
|
|
Q33014 |
12 |
全金厲六角法兰面自锁螺母 |
|
Nut |
|
|
5 |
|
|
AZ1664430080 |
2 |
限位拉杆总成 |
|
Limit bar assembly |
|
|
6 |
|
|
Q1841035 |
8 |
六角法兰面螺栓 |
|
Screw |
|
|
7 |
|
|
Q40110 |
8 |
平垫圈 |
|
Washer |
|
|
8 |
|
|
<333010 |
4 |
法兰锁止螺母 |
|
Nut |
|
|
9 |
|
|
AZ1664430021 |
1 |
翻转轴装配总成 |
|
Overturn axis assembly |
|
|
10 |
|
|
AZ1664430098 |
2 |
六角法兰螺栓 |
|
Screw |
|
|
11 |
|
|
Q340B18 |
2 |
1型六角螺母 |
|
Nut |
|
|
12 |
|
|
Q40318 |
2 |
弹簧垫圈 |
|
Spring washer |
|
|
13 |
|
|
Q40118 |
2 |
平垫圈 |
|
Washer |
|
|
14 |
|
|
WG1664430078 |
2 |
驾驶室前减振器总成（空气弹簧） |
|
Front susupension assembly (air spring) |
|
|
15 |
|
|
AZ1664430061 |
2 |
衬赛 |
|
Bush |
|
|
16 |
|
|
Q18414100 |
2 |
六角法兰面螺栓 |
|
Screw |
|
|
17 |
|
|
Q40214 |
2 |
人垫_ |
|
Washer |
|
|
18 |
|
|
Q33014 |
2 |
全金属六角法兰面自锁螺母 |
|
Nut |
|
|
重9 |
|
|
AZ1664430093 |
2 |
驾驶室前悬上限位块 |
|
Front susupension limit block |
|
|
20 |
|
|
AZ1664430083 |
2 |
限位板总成 |
|
Limit plate assembly |
|
|
21 |
|
|
AZ1664430051 |
1 |
前悬左下支架 |
|
Front susupcnsion bracket (left) |
|
|
22 |
|
|
AZ1664430052 |
1 |
前悬右下支架（与左件对称） |
|
Front susupension bracket (right) |
|
|
23 |
|
|
Q151B1645 |
24 |
六角头螺栓 |
|
Screw |
|
|
24 |
|
|
190003888459 |
24 |
自锁螺母 |
|
Nut |
|
|
25 |
|
|
AZ1664430094 |
2 |
驾驶室前悬下限位块总成 |
|
Front susupension limit block assembly |
|
|
26 |
|
|
Q1841260 |
8 |
六角法兰面螺栓 |
|
Screw |
|
|
27 |
|
|
WG1642440051 |
1 |
高度控制阀总成 |
|
Cortrol valve |
|
|
28 |
|
|
Q40008 |
2 |
小垫圈 |
|
Washer |
|
|
29 |
|
|
Q150B0850 |
2 |
六角头螺栓 |
|
Screw |
|
|
30 |
|
|
AZ1664430245 |
1 |
调楂杆总成 |
|
Adjust bar assembly |
|
|
31 |
|
|
Q5100614 |
1 |
销袖 |
|
Pin |
|
|
32 |
|
|
Q5002012 |
1 |
开口销 |
|
Pin opening |
|
|
34 |
|
|
AZ1664430065 |
1 |
推杆连接板总成 |
|
Push-bar board |
|
|
35 |
|
|
190003179782 |
1 |
聚酰胺管 |
|
Tube |
|
|
36 |
|
|
WG9000361316 |
2 |
T取三通接头体3-NW4 |
|
T>(ie in |
|
|
37 |
|
|
AZ1664430099 |
4 |
前悬下限位块蛰块 |
|
Washer |
|
|
38 |
|
|
Q1460820 |
12 |
六佑头螺柠、弹黄势阍和平蛰阁组合件 |
|
Screw |
|
|
39 |
|
|
Q40114 |
|
平垫圈 |
|
Washer |
|
