мост в сборе,энергоаккумулятор SHAANXI (Шанкси) SHACMAN F3000 24 Гр. Задний и средний мосты

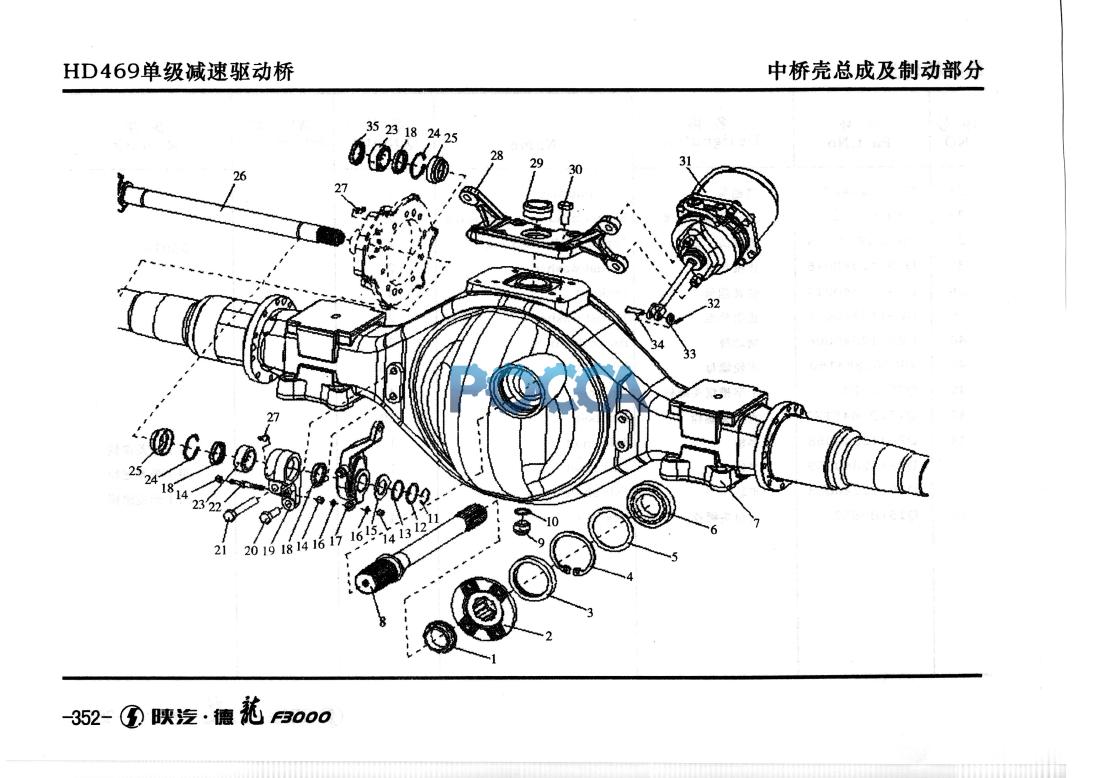

мост в сборе и энергоаккумулятор
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|---|---|---|---|---|---|---|---|
| 1 | 81.90685.0303 | 1 | 凸缘螺母 | Flange nut | 用于无差速锁 | |||
| 2 | HD469-2502024 | 1 | 凸缘巾155 | Flange0155 | 选用 | |||
| DZ9112340058 | 2 | 半轴 | Axle shaft | C02保护焊，MAN悬架 | ||||
| 3 | DZ9112320184 | 1 | 轴密封圈 | Seal ring for axle | 33019 | |||
| 4 | Q430110F3 | 1 | 孔用弹性挡圈 | Circlip for hole | 用于带差速锁 | |||
| 5 | HD469-2502023 | 2 | 垫圈DIN988 90*110*2 | Washer | ||||
| 6 | 81.31420.0402 | 1 | 深沟球轴承6212 | Deep groove ball bearing | ||||
| 7 | DZ9114330700 | 1 | 中桥壳总成(469) | Axle housing assembly(469) | ||||
| 8 | HD469-2502022 | 1 | 贯通轴（输出端） | Transfixion shaft(output) | ||||
| 9 | 58600330015 | 1 | 磁性螺塞总成 | Magnetic plug assembly | ||||
| 10 | AZ9003090001 | 1 | 密封垫圈 | Seal washer | ||||
| 11 | 06.29010.0127 | 2 | 轴用弹性挡圈 | Circlip for axle | ||||
| 12 | 81.90711.0739 | 2 | 平垫圈 | Plain washer | ||||
| 13 | 06.38070.0102 | 4 | 滑脂嘴 | Grease nipple | ||||
| 14 | Q340B08 | 6 | i型六角螺母 | I-type hex nut | ||||
| 15 | 81.90711.0714 | 2 | 指示片 | Indicating plate | ||||
| 16 | Q40108 | 4 | 平垫圈 | Plain washer | ||||
| 17 | 81.50610.6214 | 1 | 自动间隙调整臂（右） | ASA (right) | ||||
| 18 | 06.56279.0133 | 6 | 油封 | Grease packing | ||||
| 19 | 81.50310.0134 | 1 | 凸轮轴支座（右） | Camshaft bracket(right) | ||||
| 20 | Q151B1645 | 2 | 六角头螺栓 | Hex bolt | ||||
| 21 | Q151B16110 | 2 | 六角头螺栓 | Hex bolt | ||||
| 22 | 81.91020.0318 | 2 | 双头螺柱 | Stud | ||||
| 23 | 06.36959.0014 | 2 | 球轴承 | Ball bearing | ||||
| 24 | 6.29029.0005 | 4 | 挡圈 | Space ring | ||||
| 25 | 81.50308.0011 | 4 | 密封圈座 | Seal holder | ||||
| 26 | 81.50301.0112 | 1 | 制动凸轮轴(右） | Brake camshaft(right) | ||||
| 27 | 06.38070.0102 | 4 | 滑脂嘴 | Grease nipple | ||||
| 28 | 81.43240.0112 | 1 | 气室支架 | Chamber bracket | ||||
| 29 | 81930010328 | 1 | 套筒 | Sleeve | ||||
| 30 | 81.90030.0146 | 2 | 螺栓 M18*2*35 | Bolt | ||||
| 31 | DZ9112360309 | 1 | 弹簧制动气室 | Chamber | ||||
| 32 | Q5004022 | 2 | 开口销 | Cotter pin | ||||
| 33 | Q40114 | 2 | 平垫圈 | Plain washer | ||||
| 34 | DZ9112340010 | 2 | 挡油盘 | Oil baffle disc | ||||
| 35 | DZ9003962021 | 2 | 内六角锥形螺塞 | Socket head cone plug screw | ||||
| 36 | 06.32499.0123 | 2 | 圆锥滚子轴承 | Tapered roller bearing | ||||
| 37 | DZ9112340016 | 2 | 止推垫环 | Thrust washer | ||||
| 38 | DZ9112340014 | 4 | 锁紧螺母 | Locknut | ||||
| 39 | DZ9112340018 | 2 | 止退垫圈 | Thrust washer | ||||
| 40 | DZ9112340006 | 2 | 制动鼓 | Brake drum | ||||
| 41 | 190003884160 | 20 | 车轮螺母 | Wheel nut | ||||
| 42 | Q2541020 | 4 | 十字槽沉头螺钉 | Slit bolt | ||||
| 43 | Q151B1645TF2 | 20 | 六角头螺栓 | Hex bolt | ||||
| 44 | DZ9112340058 | 1 | 半轴 | Axle shaft | ||||
| 45 | Q151B0850 | 4 | 六角头螺栓 | Hex bolt |
