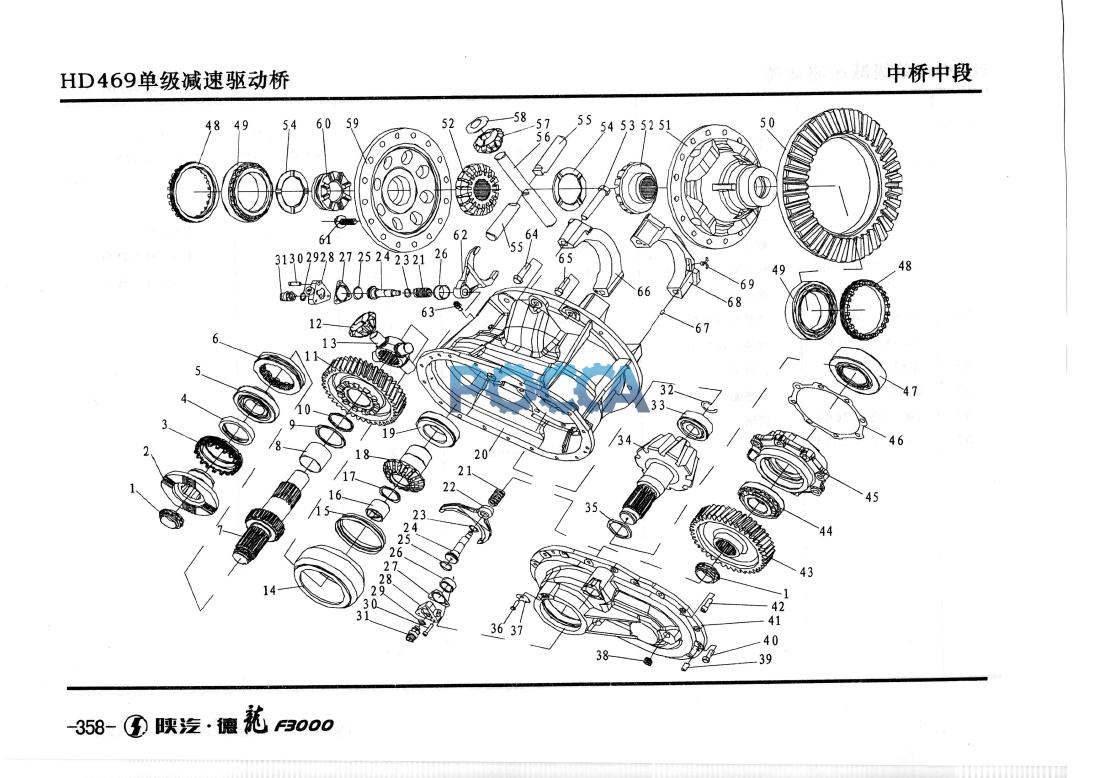

крышка редуктора среднего моста главная пара SHAANXI (Шанкси) SHACMAN F3000 24 Гр. Задний и средний мосты
корпус моста в сборе. энергоаккумулятор. мост в сборе и энергоаккумулятор
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|---|---|---|---|---|---|---|---|
| 1 | 81.90685.0303 | 2 | 凸缘螺母 | Flange nut | 用于1=3.75.286 | |||
| 2 | HD469-2502012 | 1 | 凸缘中180 | FlangeO180 | 1=5.286 | |||
| 3 | HD469-2502014 | 1 | 调整螺母 | Adjusting nut | 用于 1=5.286 | |||
| 4 | DZ9112320183 | 1 | 轴密封圈 | Seal ring for axle | 用于1=2.7143.364 | |||
| HD469-2403011 | 1 | 差速器壳（右） | Differential case (right) | 用于1=3. 0383.364 | ||||
| 5 | 06.32499.0022 | 1 | 圆锥滚子轴承 | Tapered roller bearing | ||||
| 6 | HD469-2511012 | 1 | 滑动啮合套 | Slidable joggle sleeve | ||||
| 7 | HD469-2502011 | 1 | 贯通轴(输入端） | Transfixion shaft(input) | ||||
| 8 | HD469-2502019 | 1 | 衬套 | Sleeve | ||||
| 9 | HD469-2502018 | 1 | 止推垫片 | Thrust washer | ||||
| 10 | HD469-2502017 | 1 | 垫环 | Washer | ||||
| 11 | HD469-2502021 | 1 | 主动圆柱齿轮 | Driving cylinder gear | ||||
| 12 | HD469-2510013 | 4 | 行星齿轮 | Planet gear | ||||
| 13 | HD469-2510014 | 1 | 十字轴 | Spider | ||||
| 14 | HD469-2510011 | 1 | 轴间差速器壳 | Between axle differentia] | ||||
| 15 | HD469-2510012 | 1 | 集油罩 | Oil collecter | ||||
| 16 | HD469-2510015 | 1 | 衬套 | Sleeve | ||||
| 17 | HD469-2510017 | 1 | 调整垫圈 | Adjusting washer | ||||
| 18 | HD469-2510016 | 1 | 半轴齿轮 | Axle shaft gear | ||||
| 19 | 06.32499.0005 | 1 | 圆锥滚子轴承 | Tapered roller bearing | ||||
| 20 | HD469-2502027 | 1 | 中桥主减速器壳 | Drive head case for FR axle | ||||
| 21 | HD469-24006011 | 2 | 差速锁回位弹簧 | Returning spring for diff. lock | ||||
| 22 | HD469-2511011 | 1 | 拨叉 | Shifting yoke | ||||
| 23 | HD469-2402014 | 2 | 垫圈 | Washer | ||||
| 24 | HD469-2406013 | 2 | 活塞杆 | Plunger | ||||
| 25 | HD469-2406015 | 2 | 〇形圈 | O-ring | ||||
| 26 | HD469-2406014 | 2 | 衬套 | Sleeve | ||||
| 27 | HD469-2406017 | 2 | 密封衬垫 | Seal gasket | ||||
| 28 | HD469-2406012 | 2 | 缸盖 | Cylinder cover | ||||
| 29 | Q72318 | 2 | 密封垫圈 | Seal washer | ||||
| 30 | Q218B0835 | 6 | 螺栓 | Bolt | ||||
| 31 | 81.25503.0244 | 2 | 差速锁压力开关 | Diff lock sensor | ||||
| 32 | HD469-2402055 | 1 | 止推环 | Thrust ring | ||||
| 33 | HD469-2402012 | 1 | 圆柱滚子轴承 | Cylinder roller bearing | ||||
| 34 | HD469-2502031 | 1 | 主动锥齿轮 | Pinion gear | ||||
| 35 | 81.90770.0100 | 按需 | 调整垫片 | Adjusting washer | ||||
| 36 | HD469-2502015 | 1 | 锁片 | Lock piece | ||||
| 37 | Q1800816TF2 | 1 | 六角头螺栓 | Hex bolt | ||||
| 38 | DZ9003962021 | 1 | 内六角锥形螺塞 | Square head tapered plug | ||||
| 39 | Q5211228 | 2 | 圆柱销 | Cylinder pin | ||||
| 40 | Q1811235TF2 | 14 | 六角头螺栓 | Hex bolt | ||||
| 41 | HD469-2502025 | 1 | 过桥箱盖 | Gang way case | ||||
| 42 | Q218B1235TF2 | 4 | 螺栓 | Bolt | ||||
| 43 | HD469-2502029 | 1 | 被动圆柱齿轮 | Driven cylinder gear | ||||
| 44 | 06.32499.0022 | 1 | 圆锥滚子轴承 | Tapered roller bearing | ||||
| 45 | HD469-2502030 | 1 | 轴承座 | Bearing seat | ||||
| 46 | HD469-2402021 | 按需 | 调整垫片 | Adjusting washer | ||||
| 47 | 06.32499.0192 | 1 | 圆锥滚子轴承 | Tapered roller bearing | ||||
| 48 | 81.35125.0024 | 2 | 调整螺母 | Adjusting nut | ||||
| 49 | 06.32480.1800 | 2 | 圆锥滚子轴承 | Tapered roller bearing | ||||
| 50 | HD469-2502032 | 4 | 被动锥齿轮 | Crown wheel | ||||
| 51 | HD469-2503012 | 1 | 差速器壳（左）. | Differential case (left) | ||||
| 52 | HD469-2403015 | 2 | 半轴齿轮 | Axle shaft gear | ||||
| 53 | Q151C20110TF2 | 4 | 六角头螺栓 | Hex bolt | ||||
| 54 | HD469-2403017 | 2 | 半轴齿轮垫片 | Axle shaft gear washer | ||||
| 55 | HD469-2403019 | 2 | 十字轴 | Spider | ||||
| 56 | HD469-2403021 | 1 | 十字轴 | Spider | ||||
| 57 | HD469-2403016 | 4 | 行星齿轮 | Planet gear | ||||
| 58 | HD469-2403018 | 4 | 行星齿轮垫片 | Planet gear washer | ||||
| 59 | HD469>2403014 | 1 | 差速器壳（右） | Differential case (right) | ||||
| 60 | HD469-2406018 | 1 | 滑动啮合套 | Slidable joggle sleeve | ||||
| 61 | HD469-2402011 | 16 | 六角头螺栓 | Hex bolt | ||||
| 62 | HD469-2506011 | 1 | 拨叉 | Shifting yoke | ||||
| 63 | 81.35306.0034 | 1 | 直通接头 | Plug connection | ||||
| 64 | Q151B1660TF2 | 6 | 六角头螺栓 | Hex bolt | ||||
| 65 | Q151B1650TF2 | 6 | 六角头螺栓 | Hex bolt | ||||
| 66 | HD469-2502028 | 1 | 瓦盖 | Bearing cap | ||||
| 67 | Q5220816 | 4 | 圆柱销 | Cylinder pin | ||||
| 68 | HD469-2402043 | 1 | 瓦盖（右） | Bearing cap (right) | ||||
| 69 | Q5006332 | 2 | 开口销 | Cotter pin |
