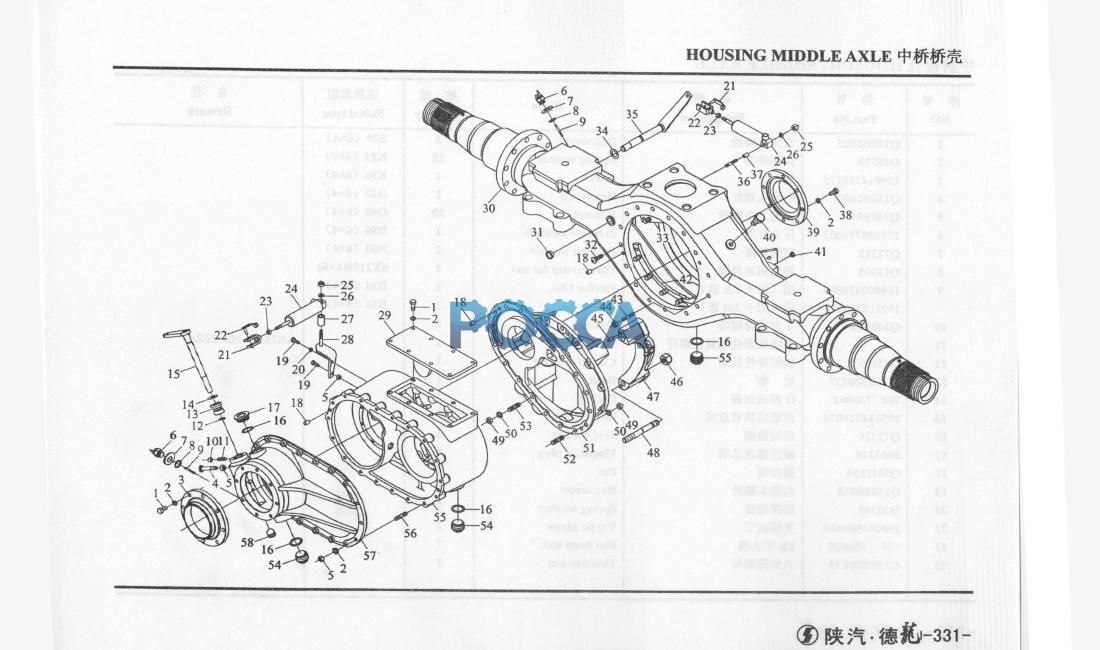

Картер редуктора среднего моста SHAANXI (Шанкси) SHACMAN F2000 24 Гр. Задний и средний мосты
Балка заднего моста Корпус бортового редуктора
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|---|---|---|---|---|---|---|---|
| 1 | Q150B1025 | 8 | 六角头螺栓 | Hex.screw | S29 (6x4) | |||
| 2 | Q40310 | 25 | 弹簧垫圈 | Spring washer | K29 (6x4) | |||
| 3 | 199014320175 | 1 | 端盖 | Cover | K38 (6x4) | |||
| 4 | Q150B1050 | 1 | 六角头螺栓 | Hex.screw | 043 (6x4) | |||
| 5 | Q340B10 | 20 | I型六角螺母 | Hex.net | 046 (6x4) | |||
| 6 | 179100710003 | 2 | 压力开关 | Pressure swithch | N56 (6x4) | |||
| 7 | Q72318 | 2 | 密封垫圈 | Packing washer | N60 (6x4) | |||
| 8 | Q43705 | 2 | 轴用钢丝挡圈 | Wire circlip for axl | SX2190(6x6) | |||
| 9 | 169000330008 | 2 | 销（用于13t级） | Pin(for 13t) | B30 (8x4) | |||
| 9 | 199112330016 | 2 | 销（用于16t级） | Pin(for 16t) | B36 (8x4) | |||
| 10 | Q340B08 | 1 | I型六角螺母 | Hex.net | ||||
| 11 | 1 | 开槽长圆柱端紧定螺钉 | Slit bol | GB75-85-M8x20Zn | ||||
| 12 | Q43117 | 1 | 轴用弹性挡圈 | Circlip for axle | ||||
| 13 | 12700320037 | 1 | 衬套 | Bush | ||||
| 14 | 780 730062 | 1 | 〇形密封圈 | O-ring | ||||
| 15 | 199014320076 | 1 | 差速锁摇臂总成 | Rocker arm | ||||
| 16 | Q72336 | 3 | 密封垫圈 | Seal washer | ||||
| 17 | 5863315 | 3 | 磁性螺塞总成 | Magnetic plug | ||||
| 18 | Q5211016 | 4 | 圆柱销 | Pin | ||||
| 19 | Q150B0818 | 2 | 六角头螺栓 | Hex.screw | ||||
| 20 | Q40308 | 2 | 弹簧垫圈 | Spring washer | ||||
| 21 | 190003964418 | 2 | 叉形活节 | Y-type hinge | ||||
| 22 | 780 350055 | 2 | ES平头锁 | Flat head lock | ||||
| 23 | Q350B08T15 | 2 | 六角薄螺母 | Thin hex.net | ||||
| 24 | 79100360018 | 2 | 工作缸 | Working cylinder | ||||
| 25 | Q33208 | 2 | II型全金属六角锁紧螺母 | Hex. Nut | ||||
| 26 | Q40108 | 2 | 平垫圈 | Flat washer | ||||
| 27 | 61000060072 | 1 | 隔套 | Spacer | ||||
| 28 | 199014320156 | 1 | 托架总成 | Bracket assembly | ||||
| 29 | AZ9114320178 | 1 | 接油板总成 | Oil baffle assembly | 用于 i=5.73 6.72 7.49 8.4 9.49 | |||
| 29 | 199014320118 | 1 | 接油板总成 | Oil baffle assembly | 用于 i=4.8 4.42 | |||
| 30 | 199014330208 | 1 | 中桥壳总成 | Middle axle housing | ||||
| 30 | DZ9114330208 | 1 | 加强中桥壳总成 | Strength middle axle housing | ||||
| 30 | DZ9114332210 | 1 | 中桥壳总成（淬火加强型） | Middle axle housing | ||||
| 30 | DZ9114330308 | 1 | 中桥壳总成(850车架） | Middle axle housing | ||||
| 31 | 190003989290 | 1 | 碗形堵塞 | Cup plug | ||||
| 32 | Q2540820 | 4 | 十字槽沉头螺钉 | Slit bolt | ||||
| 33 | 199014330147 | 1 | 弓形固定卡总成（上） | Bow hold-open catch assembly | ||||
| 34 | 680M320015 | 1 | 〇形密封圈 | O- ring | ||||
| 35 | 199014330125 | 1 | 操纵杆总成 | Operation handle assembly | ||||
| 36 | Q1200850F3 | 1 | 双头螺栓 | Stud | ||||
| 37 | 61000060084 | 1 | 间隔衬套 | Space bush | ||||
| 38 | Q150B1025 | 8 | 六角头螺栓 | Hex bolt | ||||
| 39 | 199014320141 | 1 | 轴承座 | Bearing seat | ||||
| 40 | 199000330006 | 1 | 通气口总成 | Air vent assembly | ||||
| 41 | 190003962021 | 1 | 锥螺纹内六角螺塞 | Hex plug screw | ||||
| 42 | 199014330146 | 1 | 弓形固定卡总成（下） | Bow hold-open catch assembly | ||||
| 43 | 190003810631 | 4 | 双头螺栓 | Stud | ||||
| 44 | 190002688457 | 4 | 自锁螺母 | Self-locking nut | ||||
| 45 | Q5210820 | 4 | 圆柱销 | Pin | ||||
| 46 | 190003888459 | 4 | 自锁螺母 | Self-locking nut | ||||
| 47 | 199012320002 | 2 | 差速器轴承盖 | Bearing cover | ||||
| 48 | Q12316120 | 4 | 双头螺栓 | Stud | ||||
| 49 | Q340B12 | 18 | I型六角螺母 | Hex.nut | ||||
| 50 | Q40312 | 18 | 弹簧垫圈 | Spring washer | ||||
| 51 | 199014320119 | 1 | 主减速器壳（中桥） | Housing reducer | ||||
| 52 | Q1201225F3 | 14 | 双头螺栓 | Stud | ||||
| 53 | Q1201230F3 | 4 | 双头螺栓 | Stud | ||||
| 54 | 586 330015 | 3 | 磁性螺塞总成 | Magnetic plug | ||||
| 55 | 199014320259 | 1 | 过桥箱 | Cross axle box | ||||
| 56 | Q1201028F3 | 18 | 双头螺栓 | Stud | ||||
| 57 | 199014320144 | 1 | 过桥箱盖 | Pass-axle box cap | ||||
| 58 | 190003989279 | 1 | 碗形堵塞 | Cup plug |
