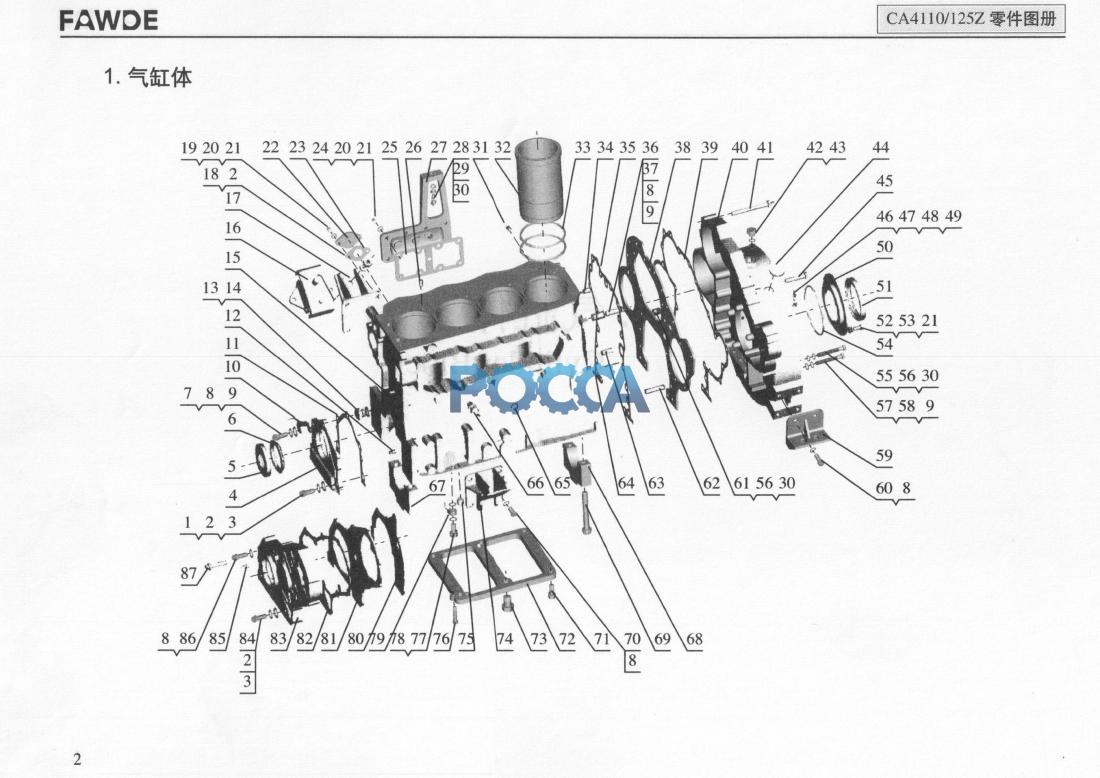

Блок цилиндров FOTON (Фотон) Ollin 5121 (ДВС CA4110-125Z)
Вентилятор охлаждения двигателя
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|---|---|---|---|---|---|---|---|
| 1 | Q150B1432 | 2 | Hexagon-headed bolt | |||||
| 2 | Q40314 | 4 | Spring washer | |||||
| 3 | Q40114 | 2 | Washer | |||||
| 4 | 1005055A001-0000 | 1 | Front oil seal seat assy. | |||||
| 5 | 1005050-001-0000 | 1 | Front oil seal | |||||
| 6 | 1005057-001-0000 | 1 | Oil retainer-front oil seal | |||||
| 7 | Q150B1230 | 3 | Hexagon-headed bolt | |||||
| 8 | Q40312 | 20 | Spring washer | |||||
| 9 | Q40112 | 6 | Washer | |||||
| 10 | 1005086-101-JH50 | 1 | Timing pointer | |||||
| 11 | 1002064-001-0000 | 1 | Washer-front oil seal | |||||
| 12 | Q5220818 | 2 | Straight pin | |||||
| 12 | Q5220825 | Straight pin | ||||||
| 13 | 1009022-001-0000 | 2 | Oil drain plug | |||||
| 14 | Q72320 | 2 | Sealing washer | |||||
| 15 | 1002014B152-0000 | 1 | Cylinder block | |||||
| 15 | 1002014B151-JH40 | Cylinder block | ||||||
| 16 | 1001025-101-JH10 | 2 | Front engine suspension cushion assy. | |||||
| 17 | 1001010-155-CS2A | Front engine suspension bracket | ||||||
| 18 | Q341B14 | 2 | Hexagon nut, style I | |||||
| 19 | Q150B0816 | 2 | Hexagon-headed bolt | |||||
| 20 | Q40408 | 10 | Spring washer Light type | |||||
| 21 | Q40108 | 15 | Washer | |||||
| 22 | 1002097-101-0000 | Cover | ||||||
| 23 | 1002098-101-0000 | 1 | Gasket | |||||
| 24 | Q150B0825 | 7 | Hexagon-headed bolt | |||||
| 25 | 1002096-101-0000 | 1 | Gasket | |||||
| 25 | 1002096A001-0000 | Gasket | ||||||
| 26 | Q5281020 | 2 | Straight pin | |||||
| 27 | 1002094-155-JH1G | 1 | Inspection cover | |||||
| 27 | 1002094-151-JH40 | Inspection cover | ||||||
| 28 | Q150B1030 | 1 | Hexagon-headed bolt | |||||
| 29 | Q40310 | 1 | Spring washer | |||||
| 30 | Q40110 | 20 | Washer | |||||
| 31 | Q522088 | 3 | Straight pin | |||||
| 32 | 1002016A220-0000 | 4 | Cylinder liner | |||||
| 33 | 1002017-001-0000 | 8 | O-Ring | |||||
| 34 | Q5221218 | 1 | Straight pin | |||||
| 35 | 1002079-001-0000 | 1 | Gasket | |||||
| 36 | 1002081-001-0000 | 1 | Stud-starter | |||||
| 37 | Q340B12 | 1 | Hexagon nut, style I | |||||
| 38 | 1002075A155-0000 | 1 | Plate of gear casing cover assy. | |||||
| 39 | 1002078-101-JH50 | 1 | Gasket | |||||
| 40 | 1002061-104-JH10 | 1 | Gear casing cover-flywheel casing | |||||
| 41 | Q150B10130 | 1 | Hexagon-headed bolt | |||||
| 42 | Q617B18 | 1 | Hexagon-headed plug | |||||
| 43 | Q72320 | 1 | Sealing washer | |||||
| 44 | 1002068-001-0000 | 2 | Rubber plug for flywheel casing | |||||
| 45 | Q150B1060 | 6 | Hexagon-headed bolt | |||||
| 46 | 1002066-001-0000 | 1 | Timing pointer of flywheel | |||||
| 47 | GB823-1988 M6X10 | 1 | Screw M6X10 | |||||
| 48 | Q40406 | 1 | Spring washer Light type | |||||
| 49 | Q40106 | 1 | Washer | |||||
| 50 | 1005067B001-0000 | 1 | Rear oil seal seat | |||||
| 51 | 1005060A001-0000Q | 1 | Rear oil seal | |||||
| 52 | Q150B0820 | 5 | Hexagon-headed bolt | |||||
| 53 | 040308 | 5 | Spring washer | |||||
| 54 | Q73431145 | 1 | O-ring ' | |||||
| 55 | Q150B1075 | 8 | Hexagon-headed bolt | |||||
| 56 | Q40410 | 19 | Spring washer Light type | |||||
| 57 | Q150B1275 | 2 | Hexagon-headed bolt | |||||
| 58 | Q40412 | 2 | Spring washer Light type | |||||
| 59 | 1001011-001-0000A | 2 | Rear engine suspension bracket | |||||
| 60 | 1001012-101-0000 | 8 | Hexagon-headed bolt | |||||
| 61 | Q340B10 | 5 | Hexagon nut, style I | |||||
| 62 | 1002083-001-0000 | 2 | Stud-clutch cover | |||||
| 63 | Q5221230 | 1 | Straight pin | |||||
| 64 | Q5280408 | 6 | Straight pin | |||||
| 65 | Q72218 | 2 | Plug plate | |||||
| 66 | 1002021-001-0000 | 2 | Lifting bolt | |||||
| 67 | 1005141-001-0000 | 4 | Main bearing cap | |||||
| 68 | 1005143A001-0000 | 1 | Rear main bearing cap | |||||
| 69 | 1005144-001-0000 | 10 | Main bearing cap bolt | |||||
| 70 | 1001014-101-0000 | 8 | Hexagon-headed bolt | |||||
| 71 | 1002011-101-0000 | 4 | Bolt-strength plate | |||||
| 72 | 1002018A101-0000 | 1 | Strength plate | |||||
| 73 | 1002012-101-0000 | 1 | Bolt-strength plate | |||||
| 74 | 1001020A155-0000 | Front engine suspension bracket | ||||||
| 74 | 1001020-151-JH2M | 2 | Front engine suspension bracket | |||||
| 75 | 1002099-300-0000 | Straight pin | ||||||
| 76 | 1002013A101-0000 | 2 | Bolt-strength plate | |||||
| 77 | 1002135-052-0000 | 4 | link bolt assembly of cooling muzzle | |||||
| 78 | Q72312 | 8 | Sealing washer | |||||
| 79 | 1002130-052-0000 | 4 | Piston cooling muzzle assembly | |||||
| 80 | 1005084A151-JH40 | Gasket | ||||||
| 81 | 100508 IB 151-JH40 | Front plate of gear casing | ||||||
| 82 | 1005085B151-JH40 | Gasket-front gear casing cover | ||||||
| 83 | 1005082A151-JH40 | Front gear casing cover | ||||||
| 84 | Q150B1455 | Hexagon-headed bolt | ||||||
| 85 | 1005086-151-JH40 | Timing pointer | ||||||
| 86 | Q150B1260 | Hexagon-headed bolt | ||||||
| 87 | Q1841050 | Hexagon-headed bolt |
